PD[
/R
/R!/RGLJLWV
/
PD[
!GLJLWVPD[
/!/GLJLWV
/
/
/RDG
/ !GLJLWV
'LJLWV
/!/GLJLWV
/
Load Comment Load Digits
L=0 100 kg load cell (2 mV/V) not
loaded
Approx. 0
L0 Mechanical installation on
load cell (dead load)
For 25 kg Approx. 5 000 000
L1 Calibration weight 1 placed on‐
to scale
For 60 kg Approx. 12 000 000
L2 Calibration weight 2 placed on‐
to scale
For 80 kg Approx. 16 500 000
L
max
Nominal weight of load cell 100 kg Approx. 20 000 000

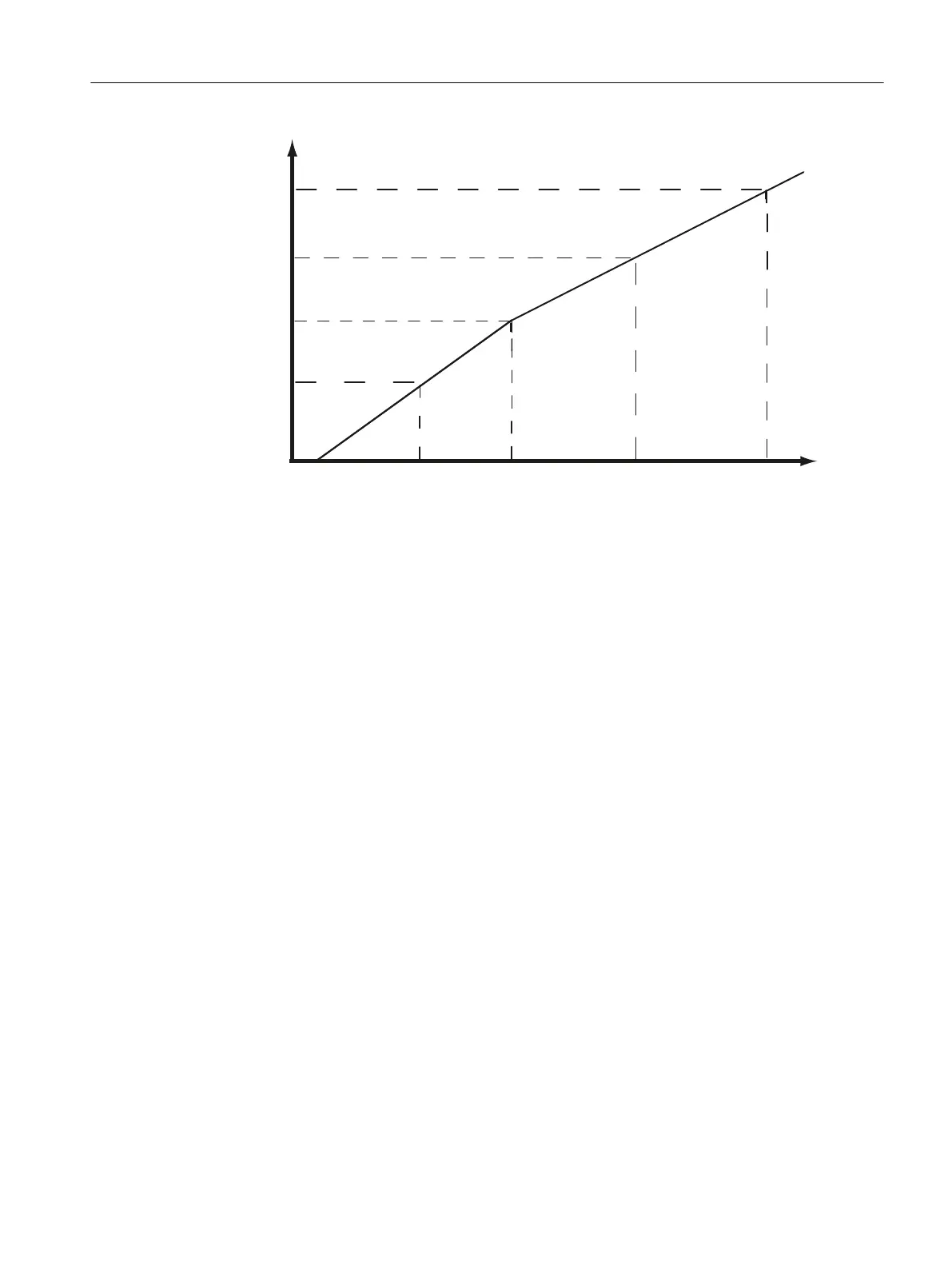

Figure 5-2 Linearizing the scale characteristic curve
See also
Calibration weights 0, 1, 2, 3, 4 [calibrationWeight] and calibration digits [calibrationDigit] 0, 1,
2, 3, 4 (Page 62)
5.2 Automatic calibration
Introduction
Automatic calibration enables fast commissioning. The accuracy of the scale depends on the
entered parameters and the mechanical properties of the scale.
The best level of accuracy for the scale can be achieved by calibrating with Calibration with
calibration weights (Page 33).
Commissioning
5.2 Automatic calibration
Technology module TM SIWAREX WP351 HF
Operating Instructions, 01/2020, A5E47521010-AA 35
