Example: 2 FBs for 2 electronic weighing systems
The following example shows the setup of 2 FBs in 2 networks for 2 electronic weighing
systems.
Network 1
"Network 1"
FB1 Interface DB of the flour scale "Instance_flour_scale"
HW_ID of the flour scale "Flour_scale"
Interface of the flour scale "DB_SCALE_FLOUR_SCALE"
Network 2
"Network 2"
FB2 Interface DB of the sugar scale "Instance_sugar_scale"
HW_ID of the sugar scale "Sugar_scale"
Interface of the sugar scale "DB_SCALE_SUGAR_SCALE"

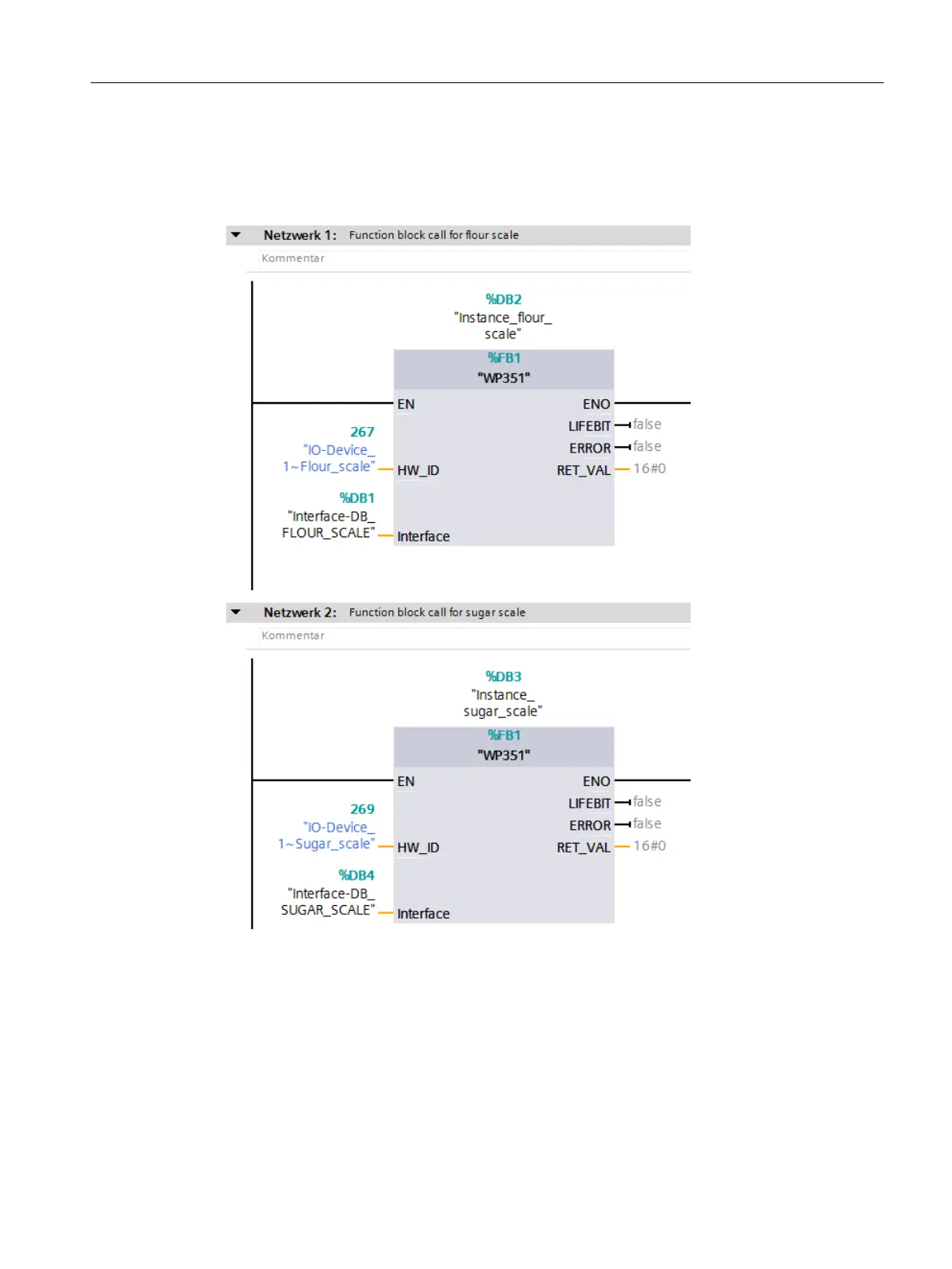

Figure 6-3 2 FBs for 2 electronic weighing systems
Parameter assignment/addressing
6.2 TIA Portal user program
Technology module TM SIWAREX WP351 HF
Operating Instructions, 01/2020, A5E47521010-AA 43
