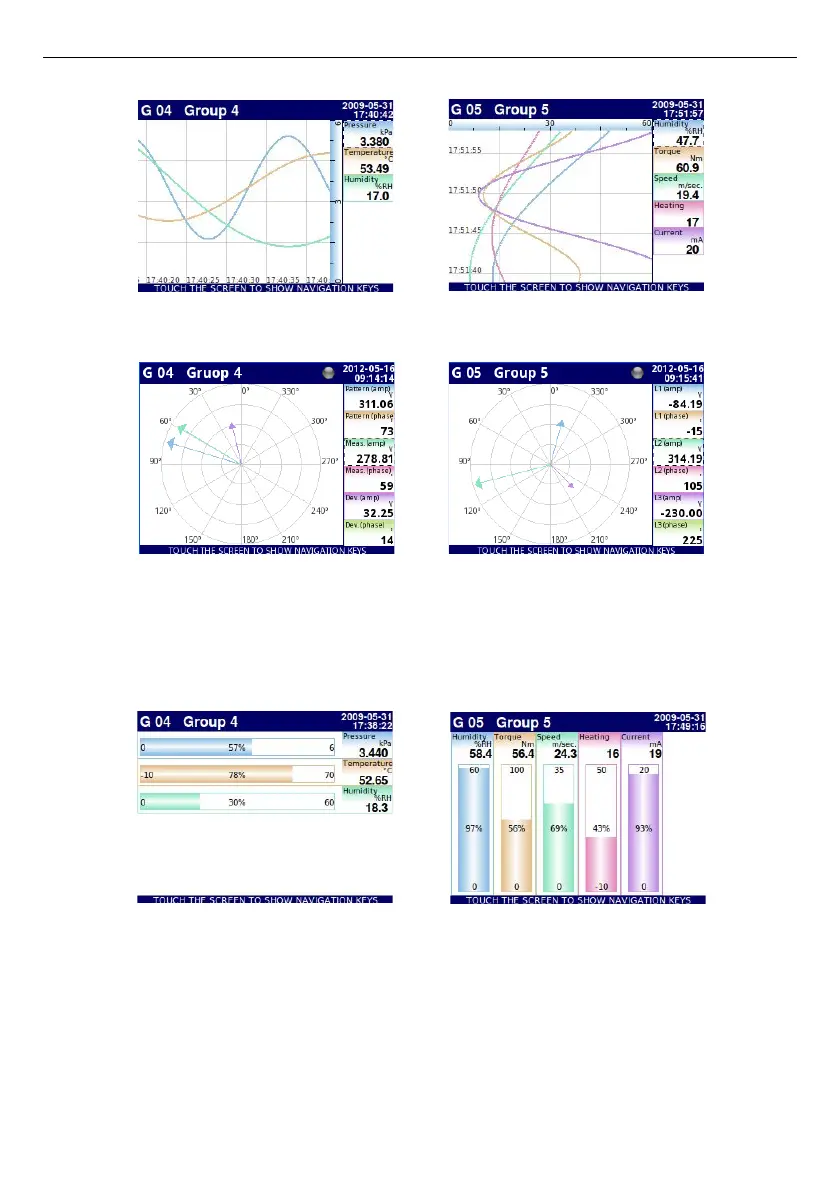

Fig. 7.113. Examples of Horizontal and Vertical Charts Group views
Fig. 7.114 Examples of Phasor Charts Group views
–
Bars
– sets the bars type when group is displayed in this mode,
•
horizontal
- horizontal direction of bars position,
•
vertical
- vertical direction of bars position,
Fig. 7.115. Examples of Horizontal and Vertical Bars Group views
–
Line width
– sets the width of the line:
•
1 pixel
- the char line one pixel width,
•
2 pixels
- the char line two pixels width,
•
3 pixels
- the char line three pixels width,
