User Manual For - CONTROLLER/DATA RECORDER MultiCon CMC-99/141

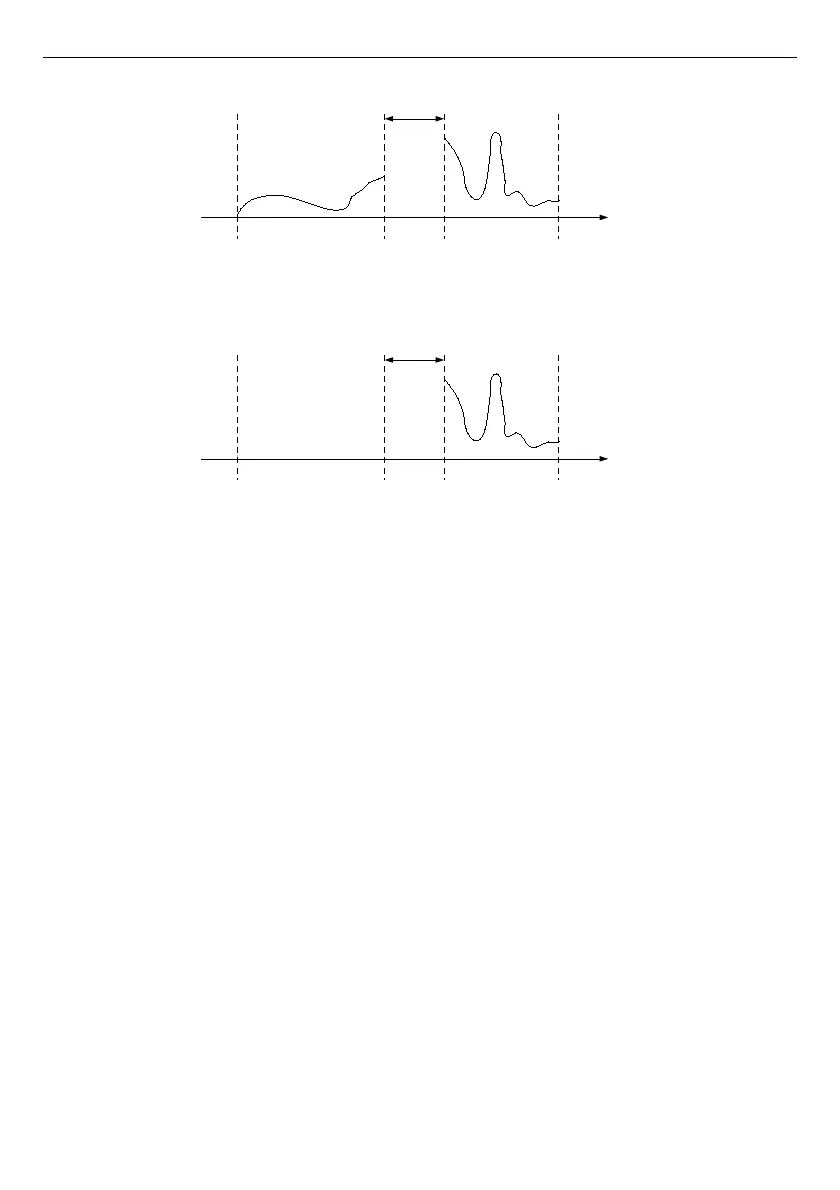

Fig. 7.117. Example of displayed signal when Time sample
≥
30min
Fig. 7.118. Example of displayed signal when Time sample < 30min
–
Background
- this parameter has option:
•
white
- the background of window displaying the chars is white,
•
black
- the background of window displaying the chars is black,
–
Channels
parameter block - this block defines the number and location of Logical
channels that are displayed in the Group, includes the parameters:
•
Slot 1
÷
6
- in each slot user can select a option (see
Fig. 7.119
÷
Fig. 7.121
):
◦
disabled
– disabled position is skipped which reduces the number of
position to deploy in the display window,
◦
empty
– the empty position remain empty so that in contrast to the disabled
position it doesn't reduce the number of position to deploy in the display
window,
◦
Logical channel
– user can select one of all available Logical channels
which will be displayed in the specific location on the screen,
•
Style
– defines color which will be used to draw logical channel selected in this
Slot
. User can specify font color in channel (except value color) and drawing
color of all elements connected with channel visualisation (see
Fig. 7.122
).
Using black
X
buttons user can return to default settings.
–
Logging options
parameter block – is visible always, but it is active only in devices
which have activated licence for logging the data (more information about the logging
license is in
Chapter 7.4. DEVICE INFORMATION, LICENCE, FIRMWARE
UPDATE, REMOTE DISPLAY, EXPORT MANUAL AND RENEW
CONFIGURATION
); In all other devices the logging options are inactive and
following message is displayed: “Available after entering license”. Using this
parameters the user can set triggering mode, sample period and description of
logging. More about logging parameters see
Chapter 7.14.2. Groups - Logging
options
.
196
Present moment
Beginning of the
time window
The device is off
t
Present moment
Beginning of the
time window
The device is off
t
