User Manual For - CONTROLLER/DATA RECORDER MultiCon CMC-99/141
** PWM internal frequency and PWM period limit Pulse - duty factor real resolution. For example, if PWM
period is 0.1 sec then real resolution of Pulse - duty factor is about 9 bits (0.1 * 5kHz = 500 levels). If
PWM period is longer than 6.55 seconds then Pulse - duty factor resolution is full 15 bits (6.56 * 5kHz >
32768 levels).
*** PWM output quantization: 20μs
Tab. 8.21 Technical data for the module S8, S16 and S24

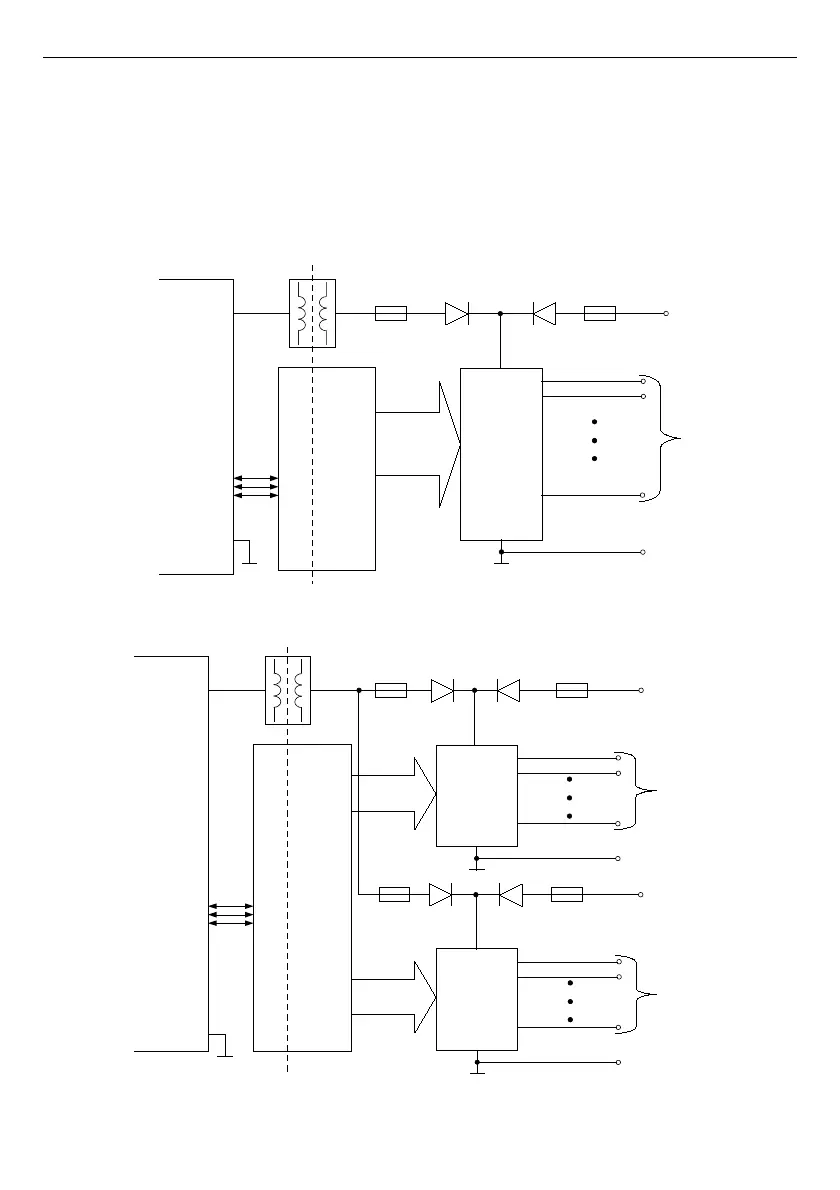

Fig. 8.24. Internal structure of the SSR output module (8 outputs)
Fig. 8.25. Internal structure of the SSR output module (16 outputs)
270
F
100mA
Interface
Driver
OUT 1- 8
F
500mA
Vcc
OUT 1-8
GND
10V
Main board
F
100mA
Interface
Driver
OUT 1-8
F
500mA
Vcc 1
OUT 1-8
GND
Main board
10V
F
100mA
F
500mA
Vcc 2
Driver
OUT 9-16
OUT 9-16
GND
