Sindoh M401 - Installing Laser Unit

Installing Laser Unit
<L/LF MODEL>
17. Connect the laser unit cables.

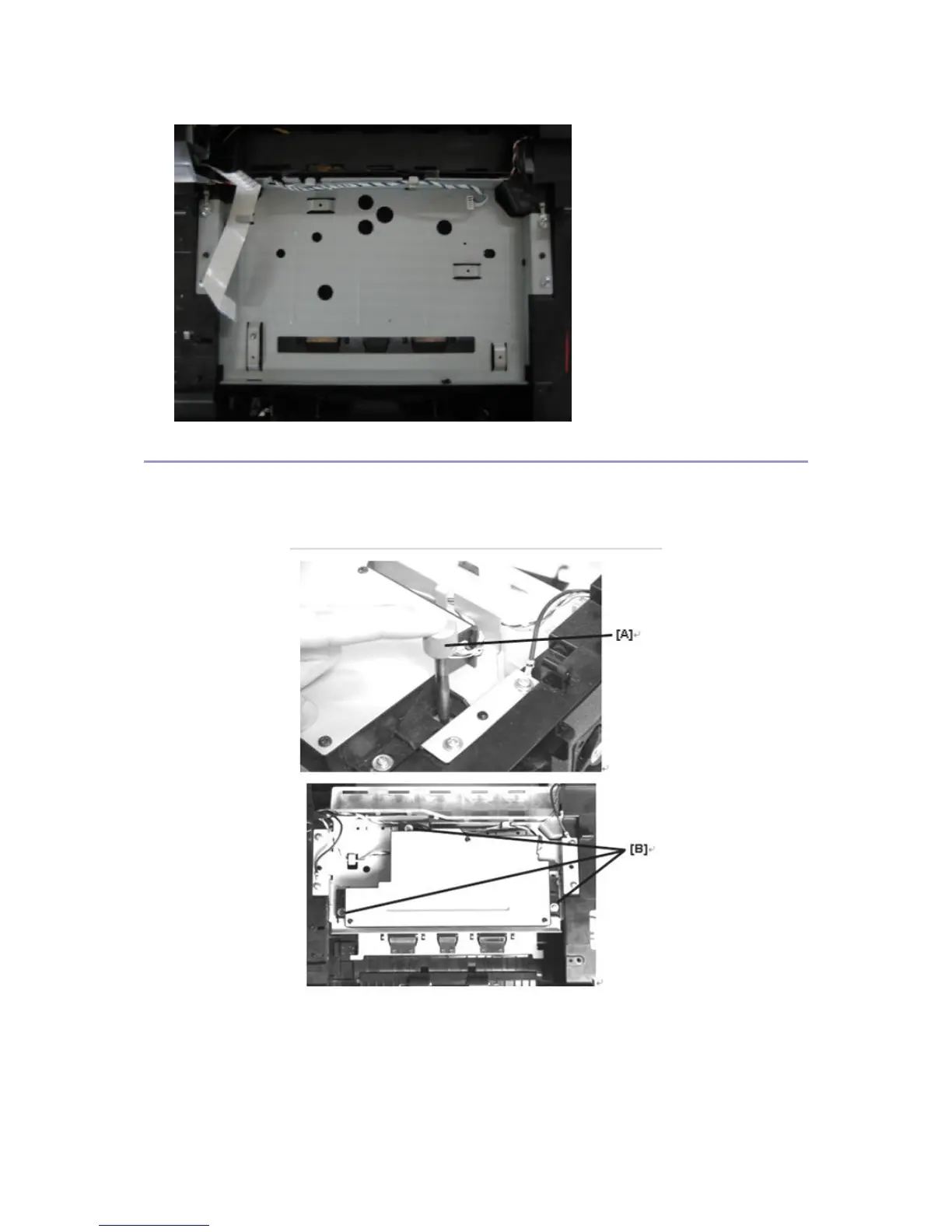

18. Before tightening the laser unit with screws, use skew JIG [A] to position the laser unit and tighten 3
screws [B].
<MF/HF MODEL>
1. Place laser unit on the frame
2. Before tightening the laser unit with screws, use skew JIG [A] to fix laser unit’s position and tighten 4
screws.
※ Screw tightening order: 1, 2, 3 and 4
