Sindoh M401 - Laser Optical Housing Unit Alignment

When re-installing the laser unit, check the laser unit’s alignment and proceed with the “Laser Unit
Adjustment” before the upper cover installation.

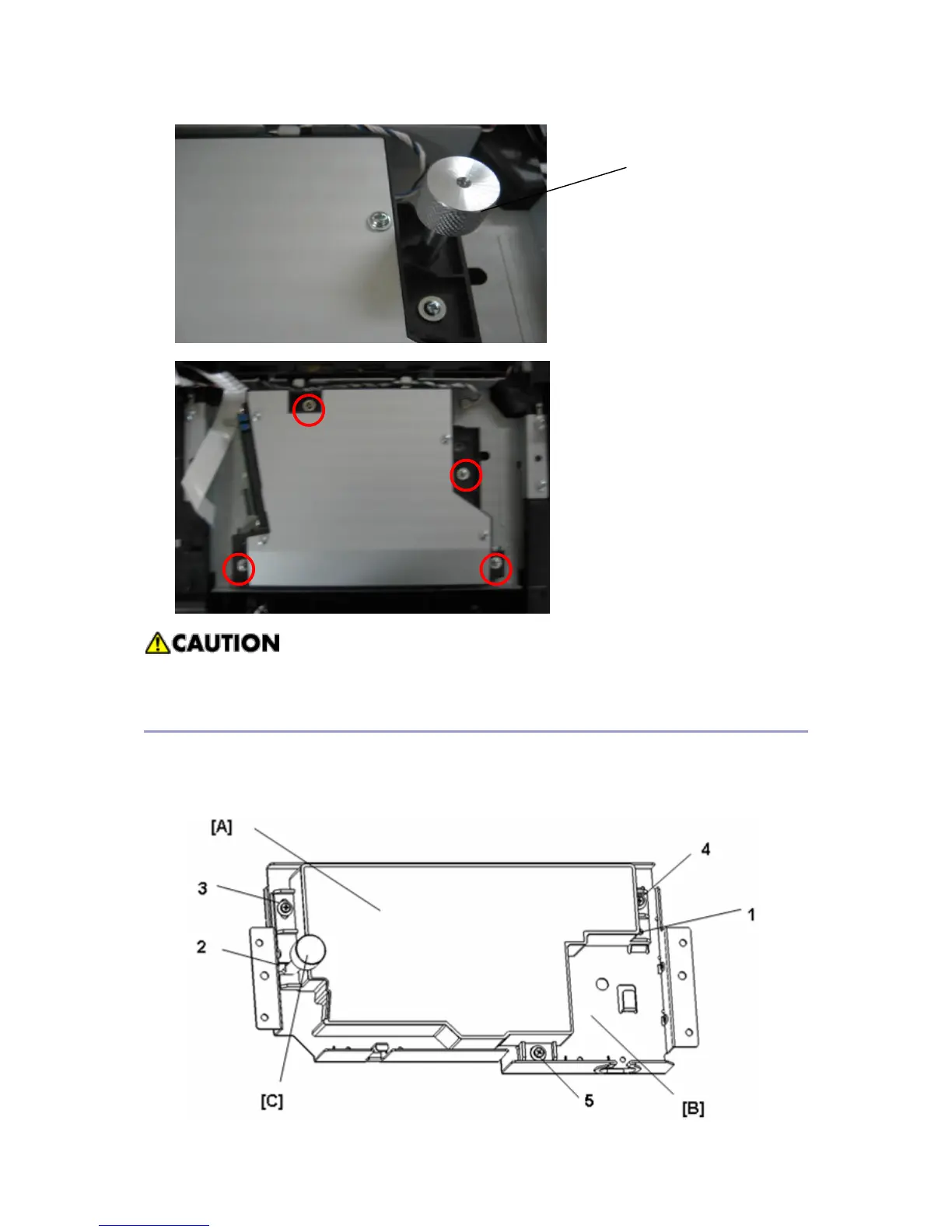

Laser Optical Housing Unit Alignment
When replacing the laser unit with a new one, please proceed with following procedures to align the
laser unit.
< L/LF MODEL >
[ A ]
1
2
3
4
