Scanner Unit

Left Scanner Cover

1. Remove the rear cover

2. Remove the left cover.

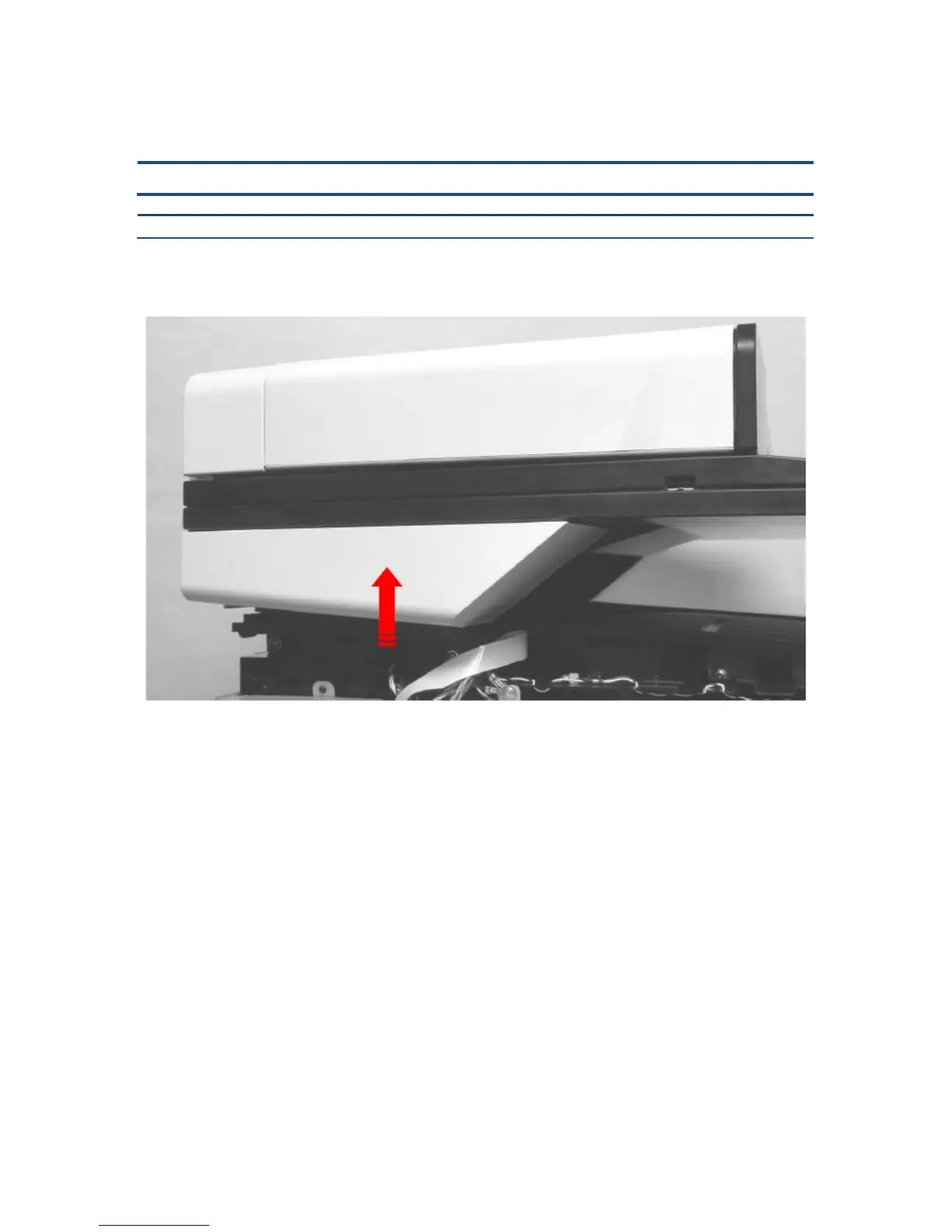

3. Lift left scanner cover up and pull it to remove it.
