Registration Guide A’ssy

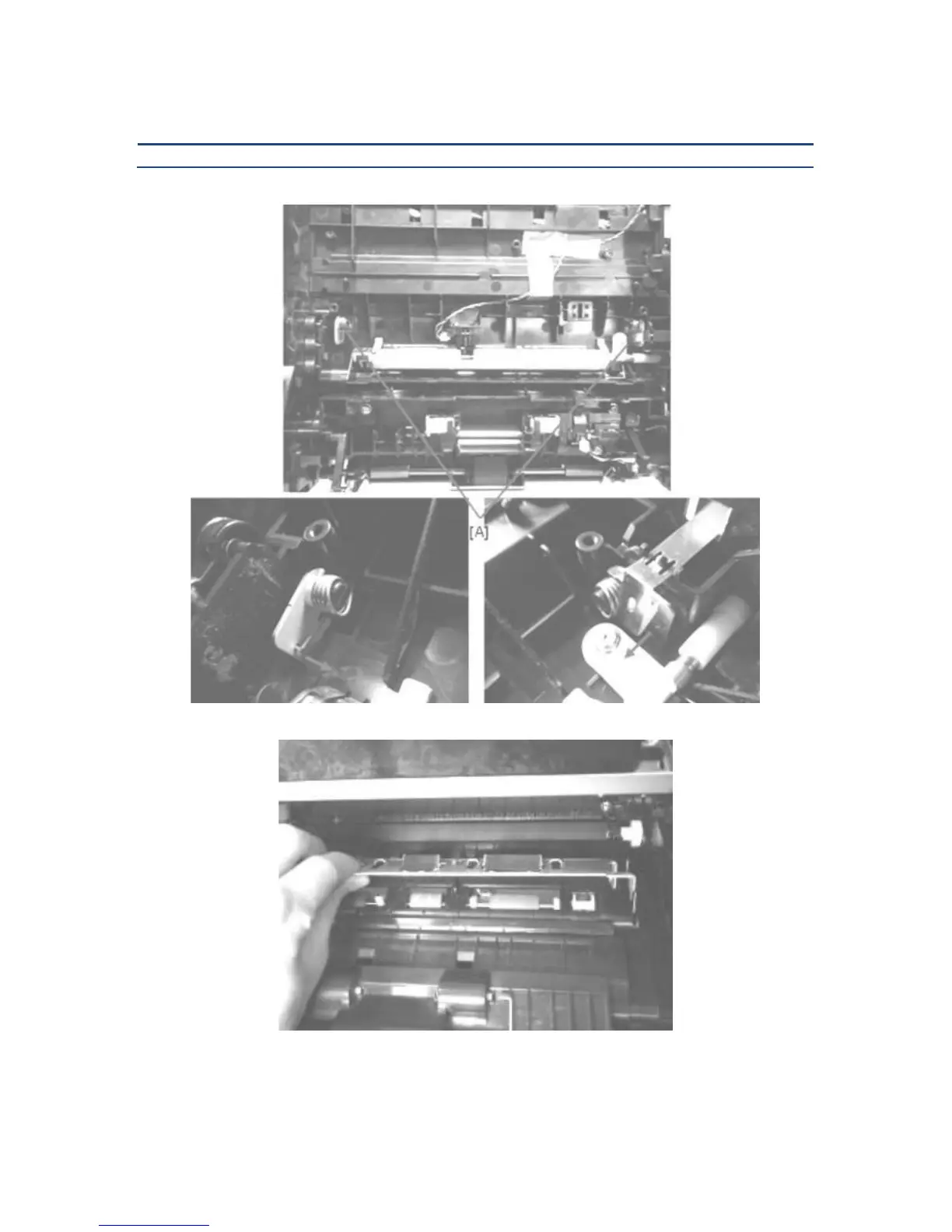

1. Remove 2 springs [A] connected to the Registration Guide A’ssy on the bottom of the machine.

2. Tilt the Registration Guide A’ssy to 60° and pull it forward to remove it.
