Sindoh M401 - Top Guide ASSY Components

Motor ASSY is assembled with ADF’s Driving Gears. It is composed with motor, R1 gear, pickup gear,
delivery gear and A3 driving gear and each gear are connected with each idle gear. Also, a holder gear
ASSY is connected to a motor pinion gear to operate this driving gear. Gear exit idle forms pulley shape
to operate A3 by mounting timing belt.

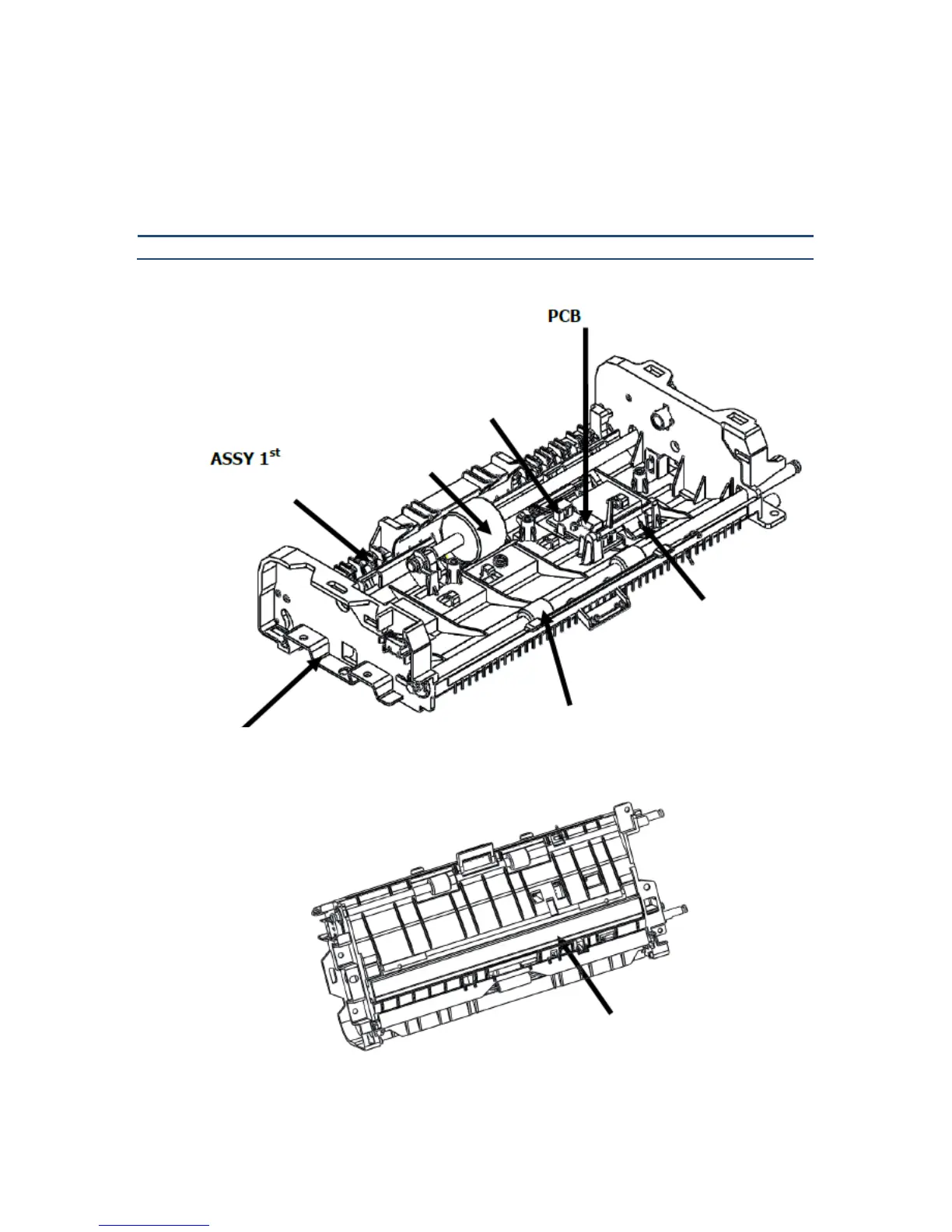

Top Guide ASSY Components
ASSY Sensor
SB2 Sensor Actuator
R1 Roller
Idle Guide
SB1 Sensor Actuator
Delivery Roller
Top Guide
Pressure Plate
