Sindoh M401 - Option Tray Pickup Roller Removal

To Next Page

To Previous Page

Option tray Pickup Roller Removal

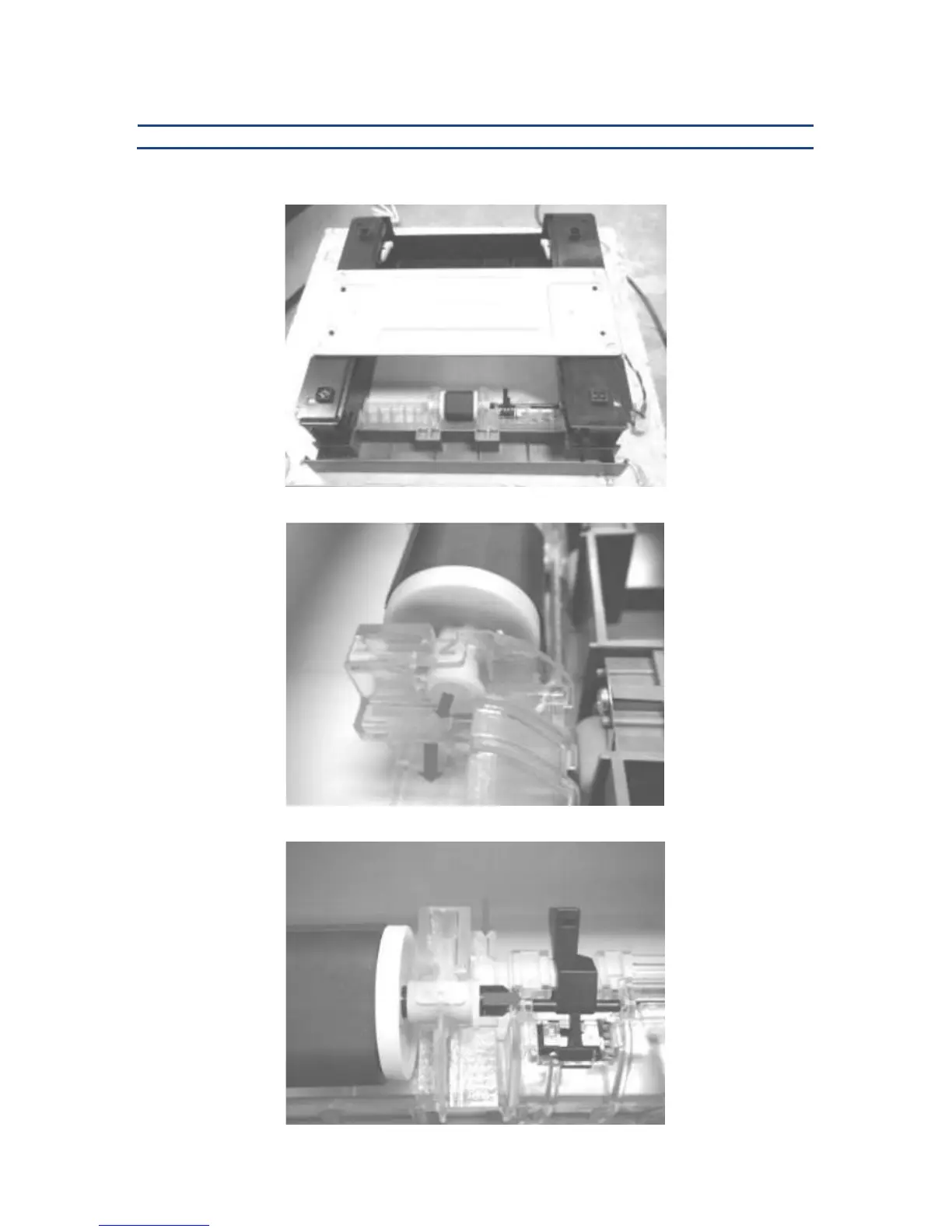

1. Flip the tray.

2. Push down the plastic preventing bushing separation and removal of the bushing.

3. Remove the bushing on the other side with same manner.
