Sindoh M401 - Motor ASSY Components

Tray ASSY is divided into paper setting feeder and paper feeding and isolating part. Side fences on the
paper setting tray are assembled with a pinion gear of front and rear fences to adjust these fences
equally. Feeding and isolation section is assembled with isolation pad ASSY to separate papers. This
isolation pad ASSY maintains isolation force with springs (compression).

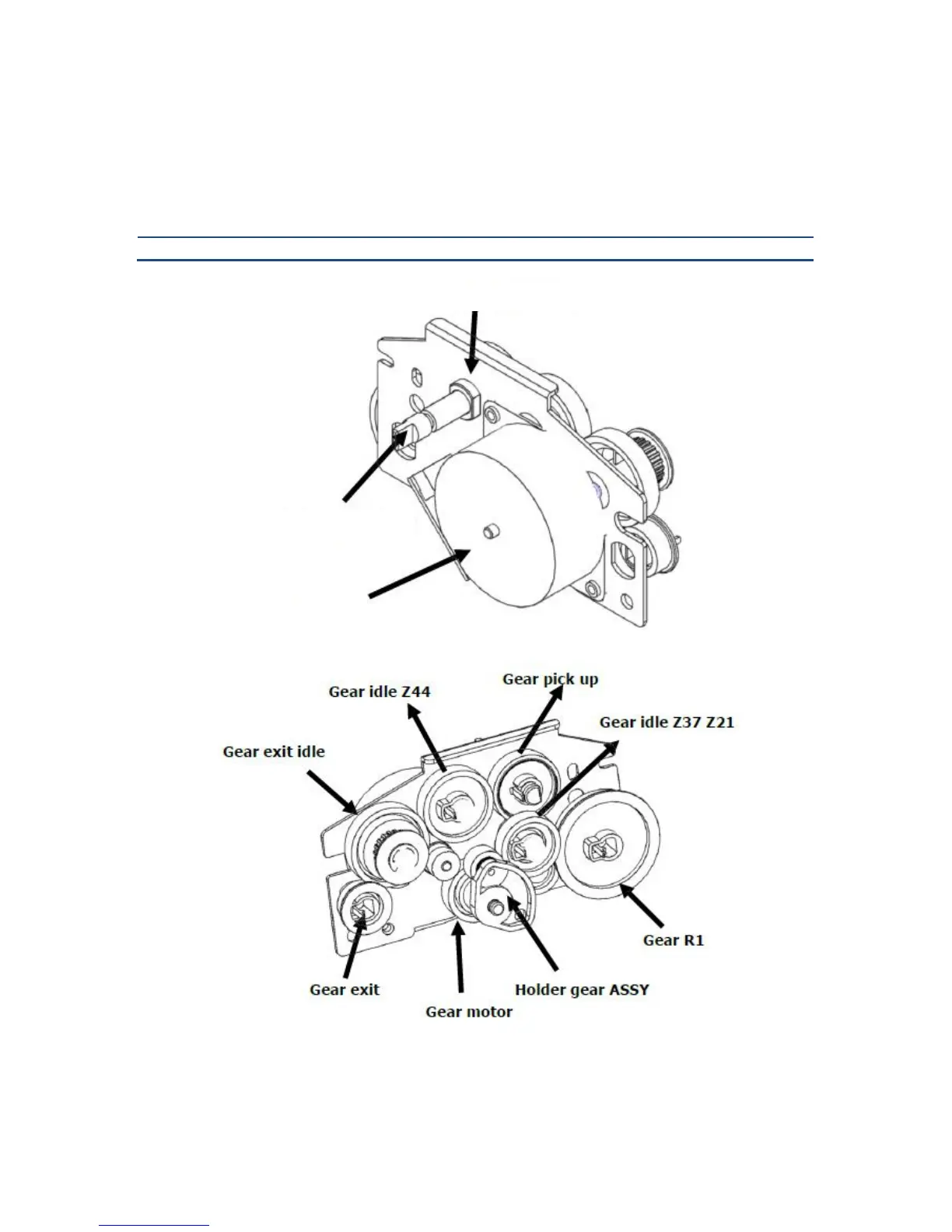

Motor ASSY Components
Motor ASSY BKT
Pick Drive Shaft
ADF Motor
