ADF Unit

ADF Pick up Assembly

1. Open ADF’s top cover.

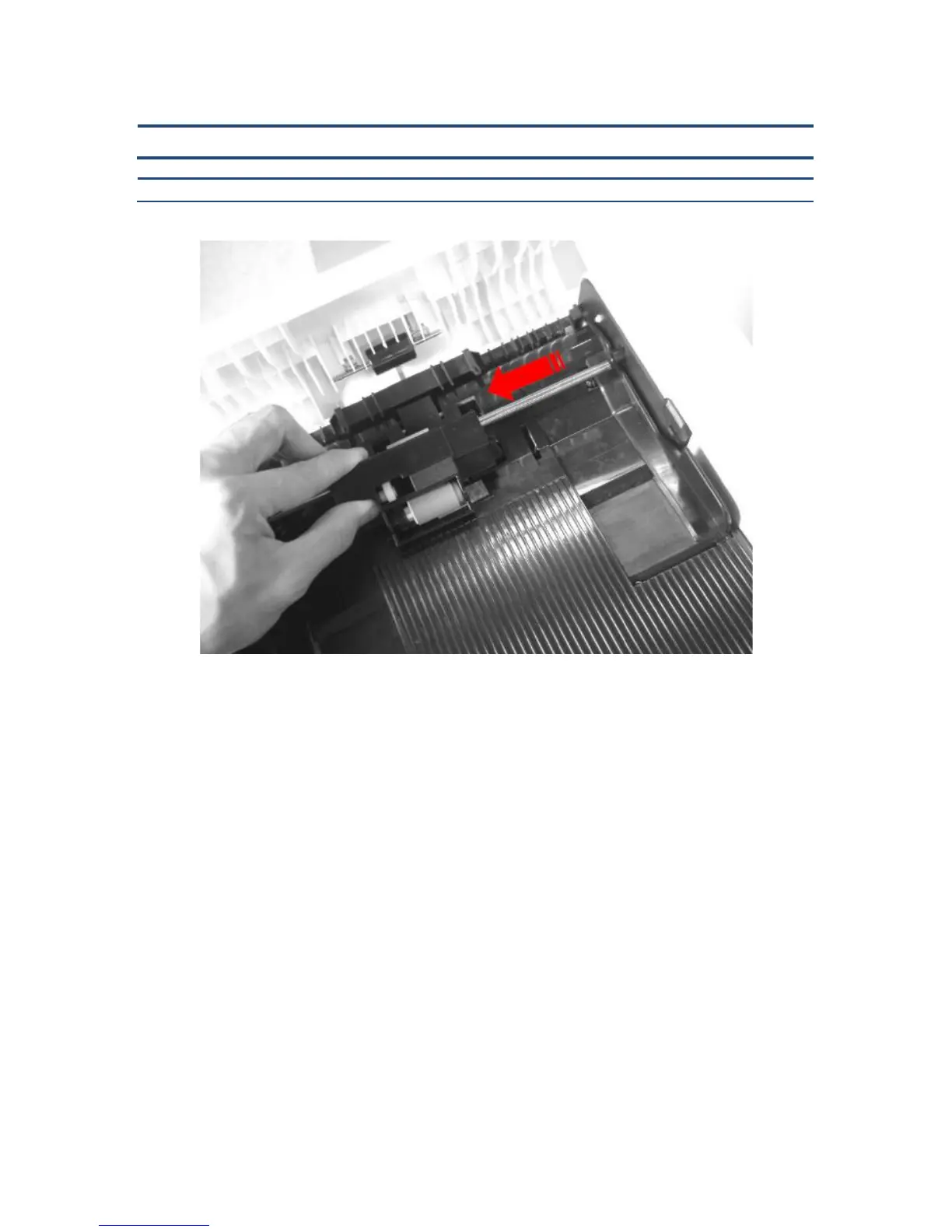

2. Hold ADF pick up assembly and pull it to arrow direction to remove it.
