Sindoh M401 - ADF Top Cover

To Next Page

To Previous Page

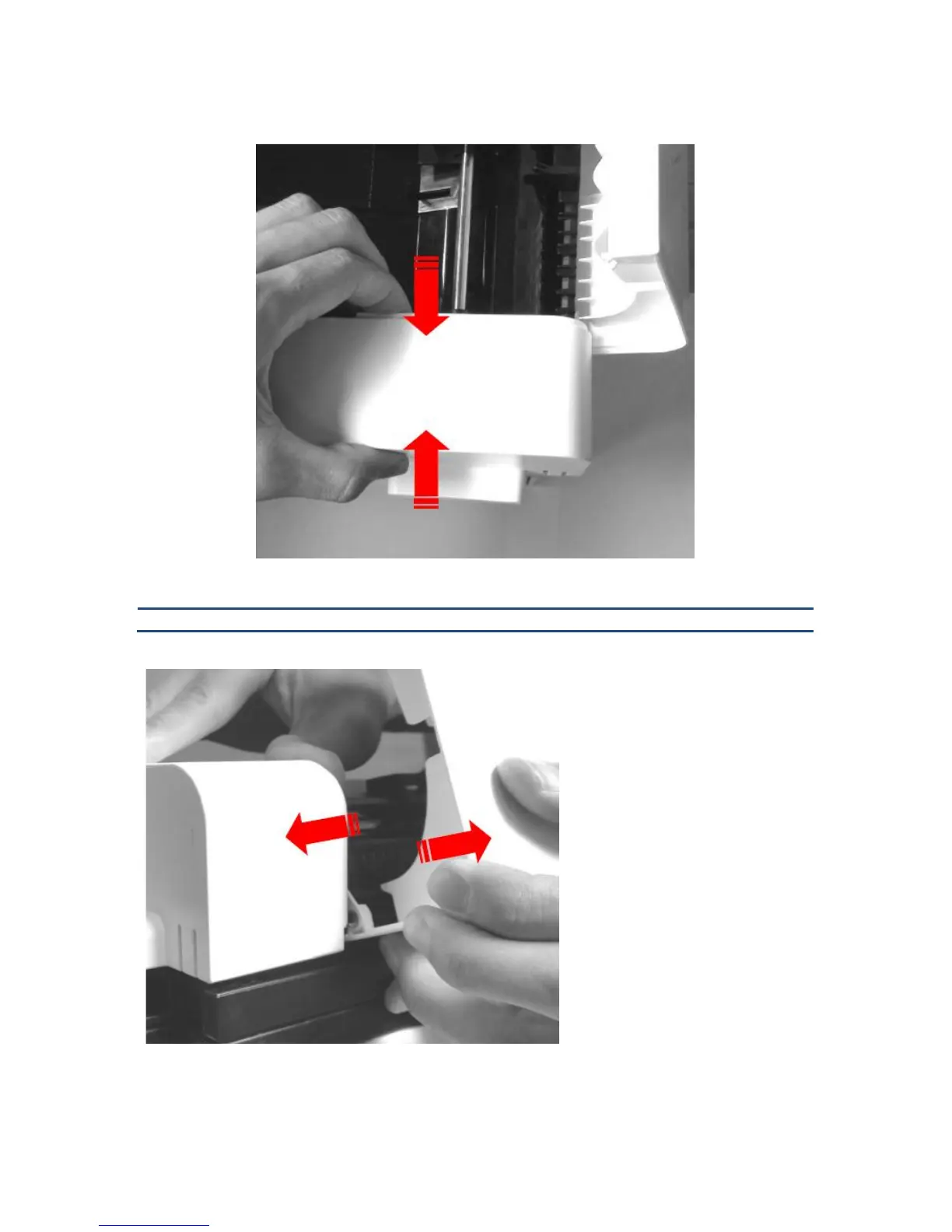

3. Press both of cover sides to arrow direction to remove ADF’s rear cover.

ADF Top Cover

1. Open ADF’s top cover.

2. Push ADF’s top cover and ADF frame to arrow direction to remove ADF’s top cover.
