Removing Fusing Unit Paper Jam
1. Removing paper on the back of Fusing unit

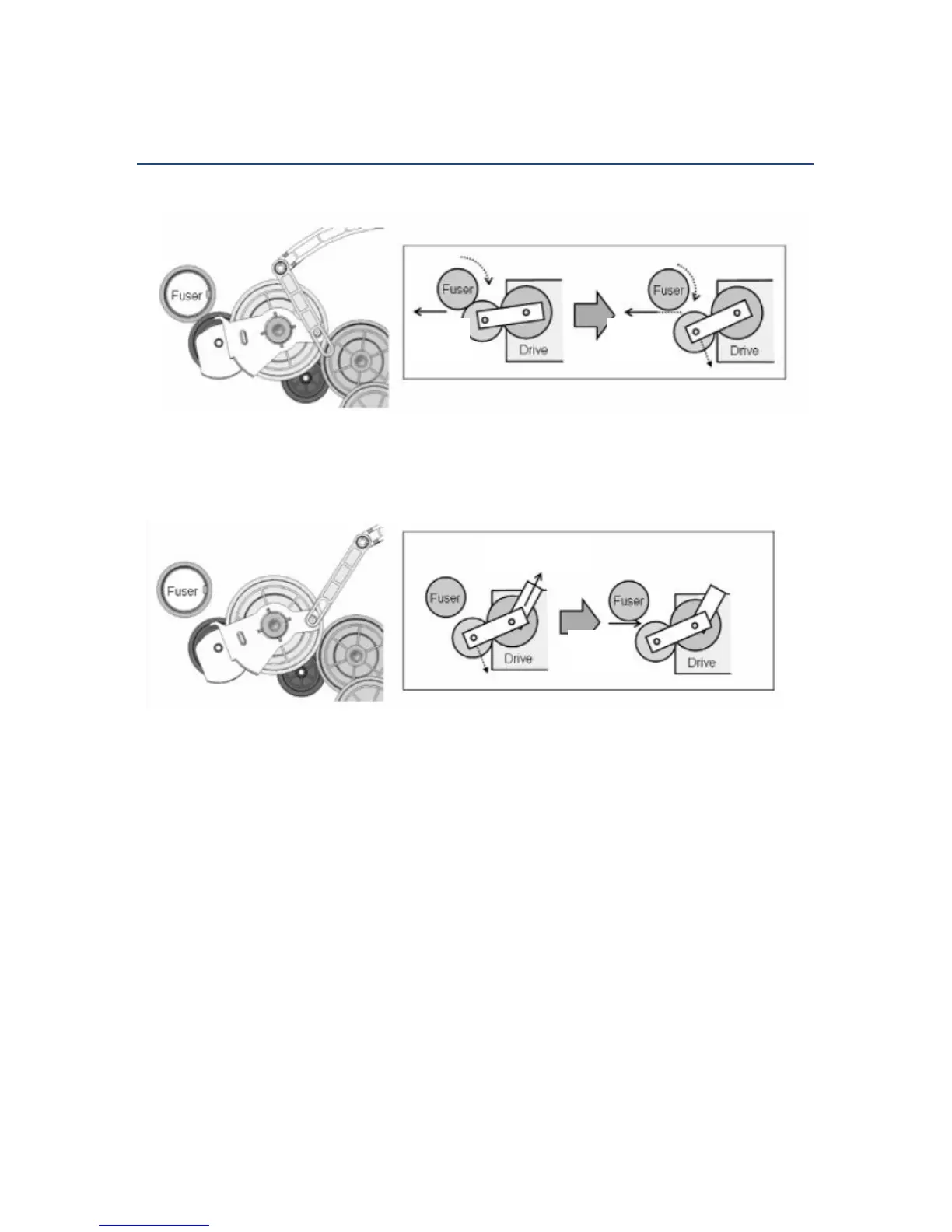

The gear link gets pushed back and disconnects gear connection and allows it to remove jammed paper.
2. Removing paper on the front of Fusing unit
When front door is opened, gears are disconnected by the link connected with front door and allow it to
remove paper easily.
Remove
paper
Remove
paper
Front door open
Remove
paper
