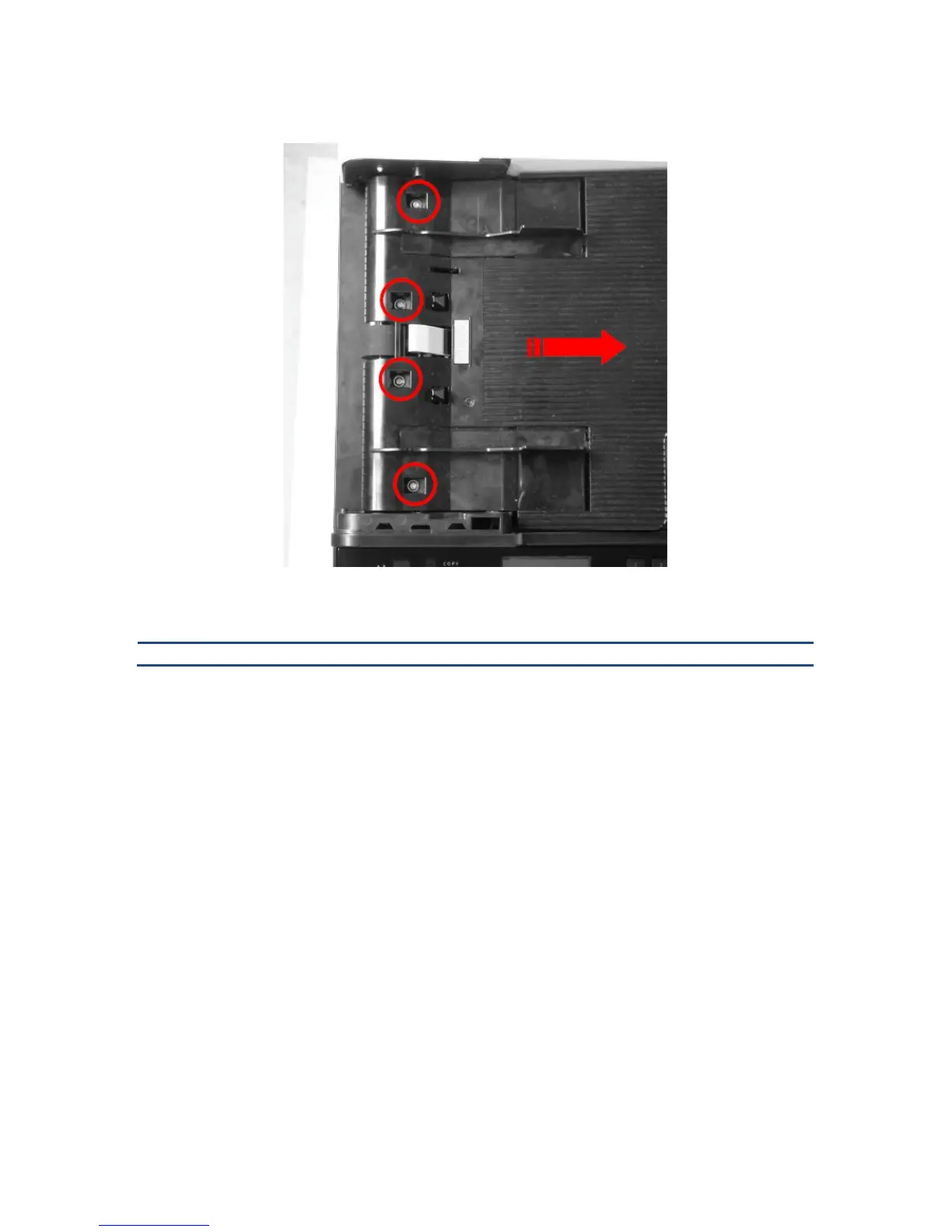

4. Remove 4 screws and lift ADF document tray assembly to arrow direction to remove it.

ADF Assembly Removal

1. Remove the rear cover.

2. Remove the left cover.

3. Remove left scanner cover.

4. Remove ADF assembly cable from control board.
