Sindoh M401 - Separating Drum Unit and Development Unit

181 pages

Save Page as PDF

To Next Page

To Previous Page

Separating Drum Unit and Development unit

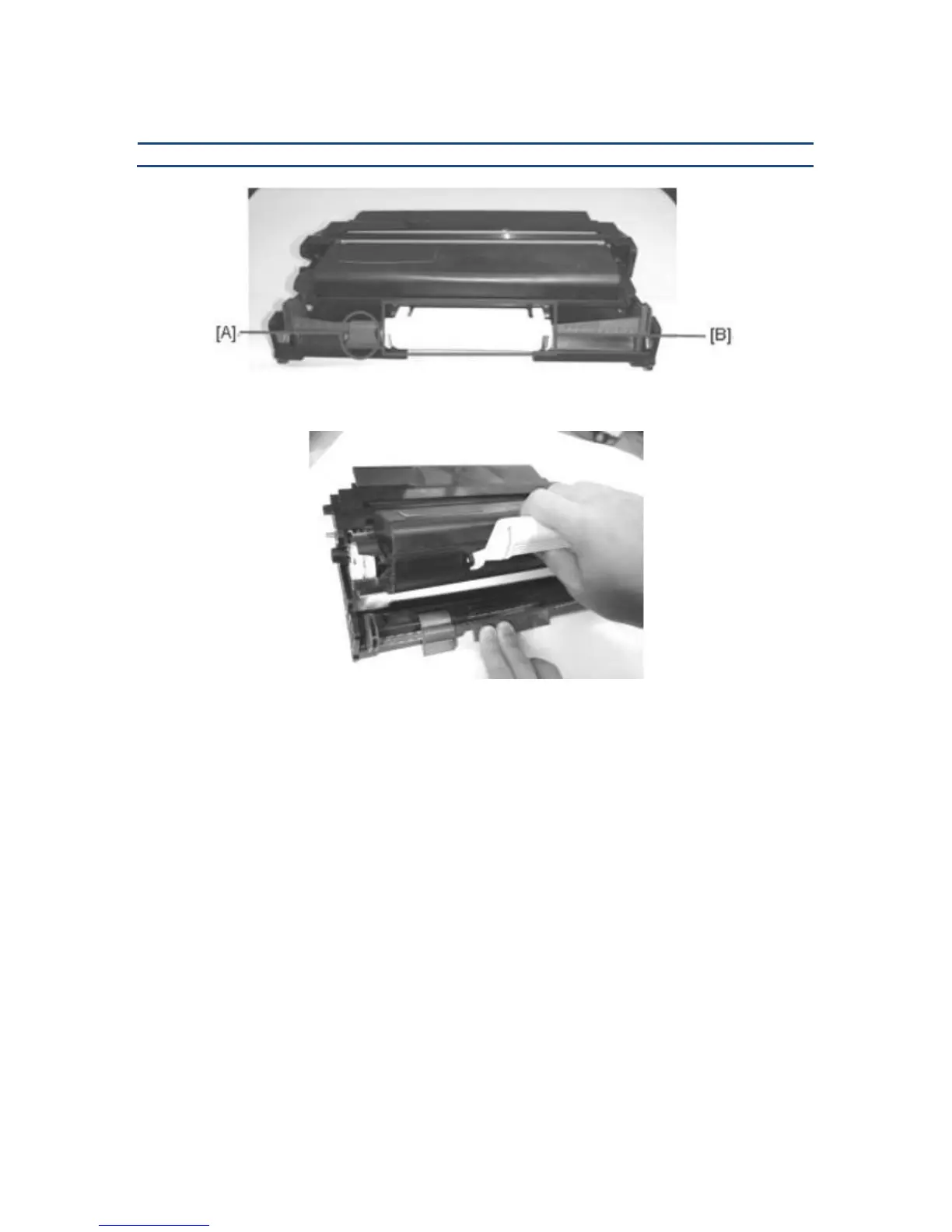

1. Press and hold the [A] development unit pressure release lever down and hold [B] handle.

2. Pull the development unit obliquely upward and remove the drum unit.
