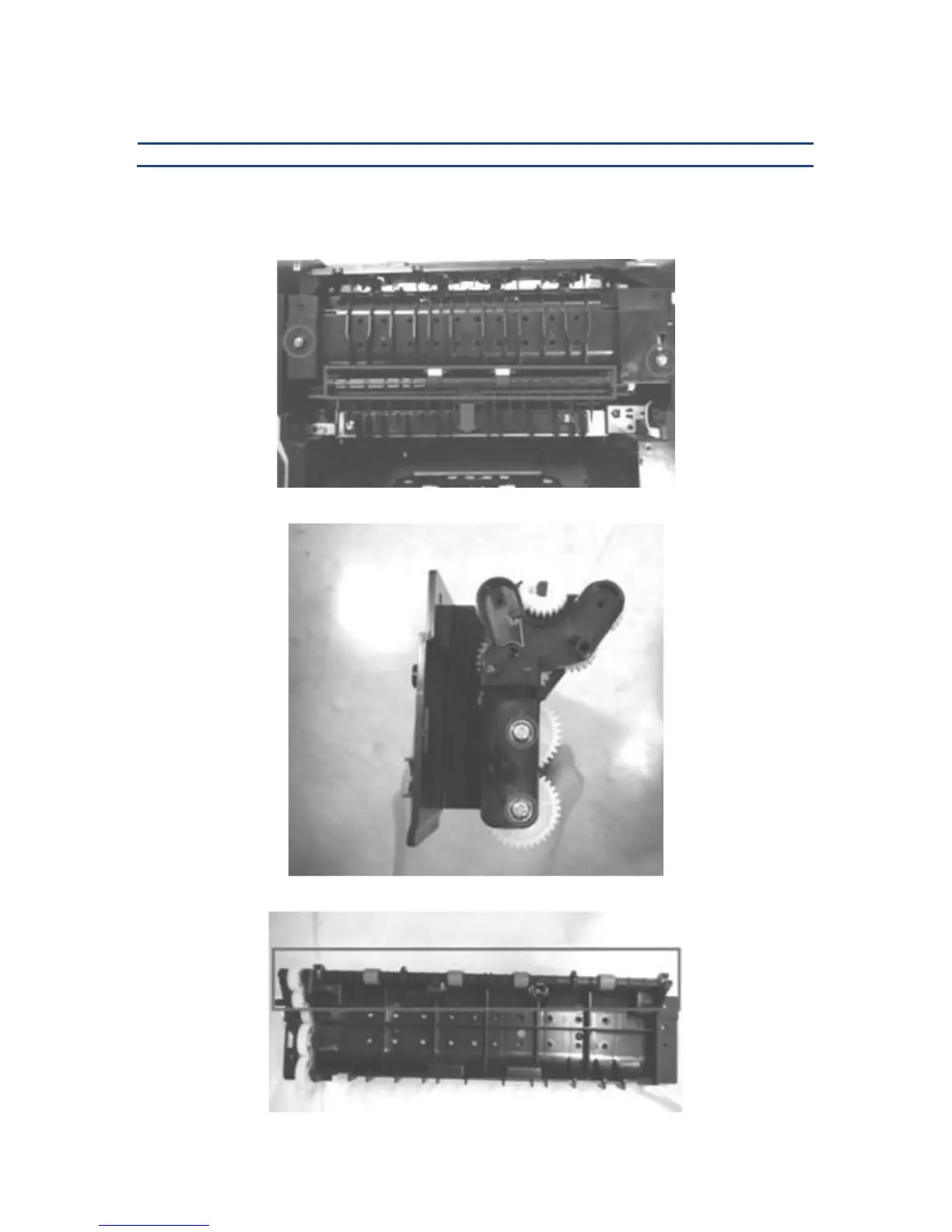

Paper Delivery Unit

1. Remove the rear cover.

2. Remove 2 screws holding delivery frame and push Fusing delivery guide down and remove the

delivery frame.

3. Remove 2 screws to replace Fusing driving gear. Delivery roller shaft can be separated.
