Sindoh M401 - Duplex Unit Drive; Paper Jam Detection

3) Base Body: It compensates skew to print the paper (regardless of A4 or letter) fed by 3 mounted
rollers in parallel.

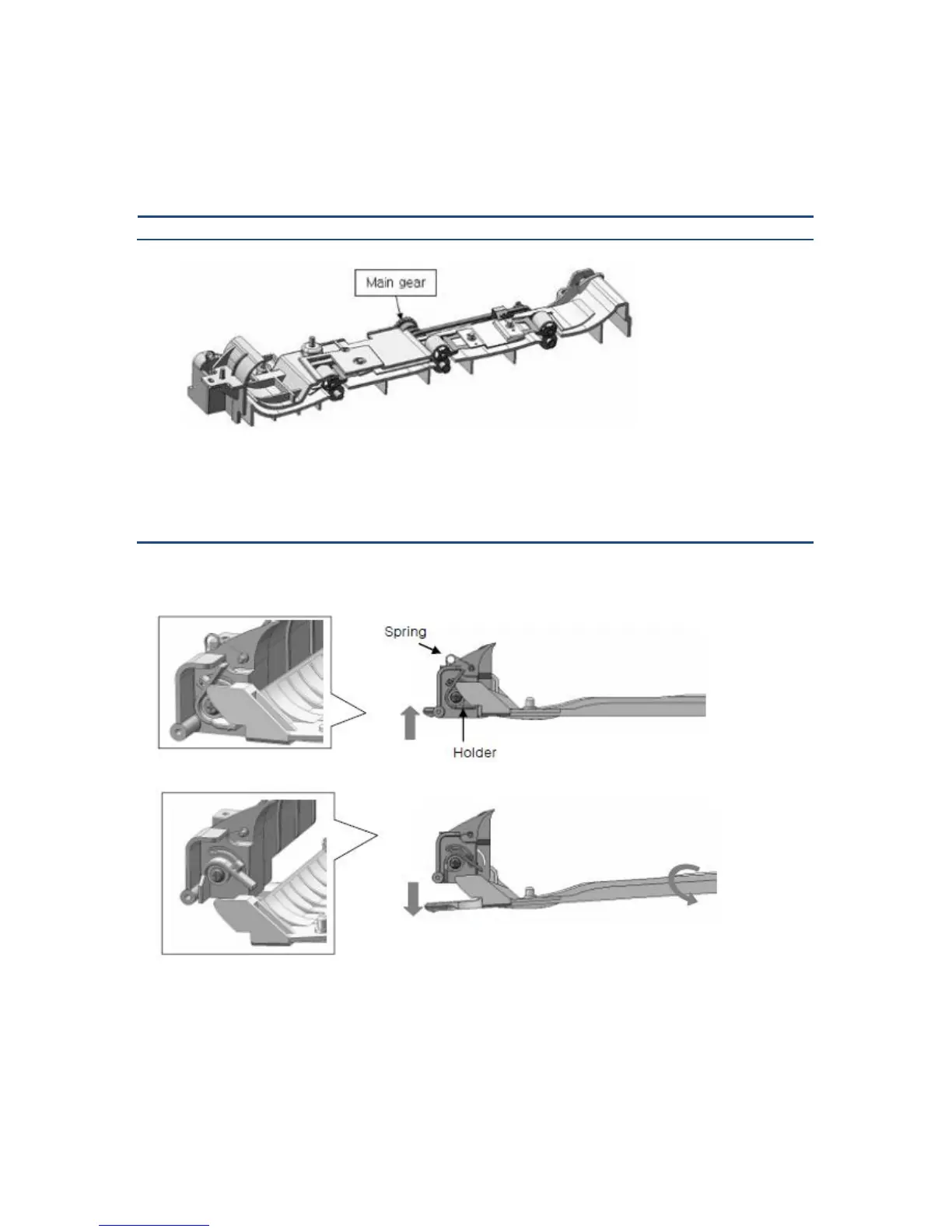

Duplex Unit Drive
Duplex Unit is connected with main drive and gears, and papers are fed to base body with reverse
method of pick-a-boo method. The paper is re aligned to left by tilted roller in reverse area. (Regardless
of letter or A4)
Paper Jam Detection
When a paper jam occurs at reverse area of duplex unit, remove the tray first and press handles down to
disengage base body to remove paper jam in the unit.
Lift handle up to close
Press handle down to open
