ADF Idle Guide

1. Remove ADF’s top cover.

2. Lift ADF assembly up.

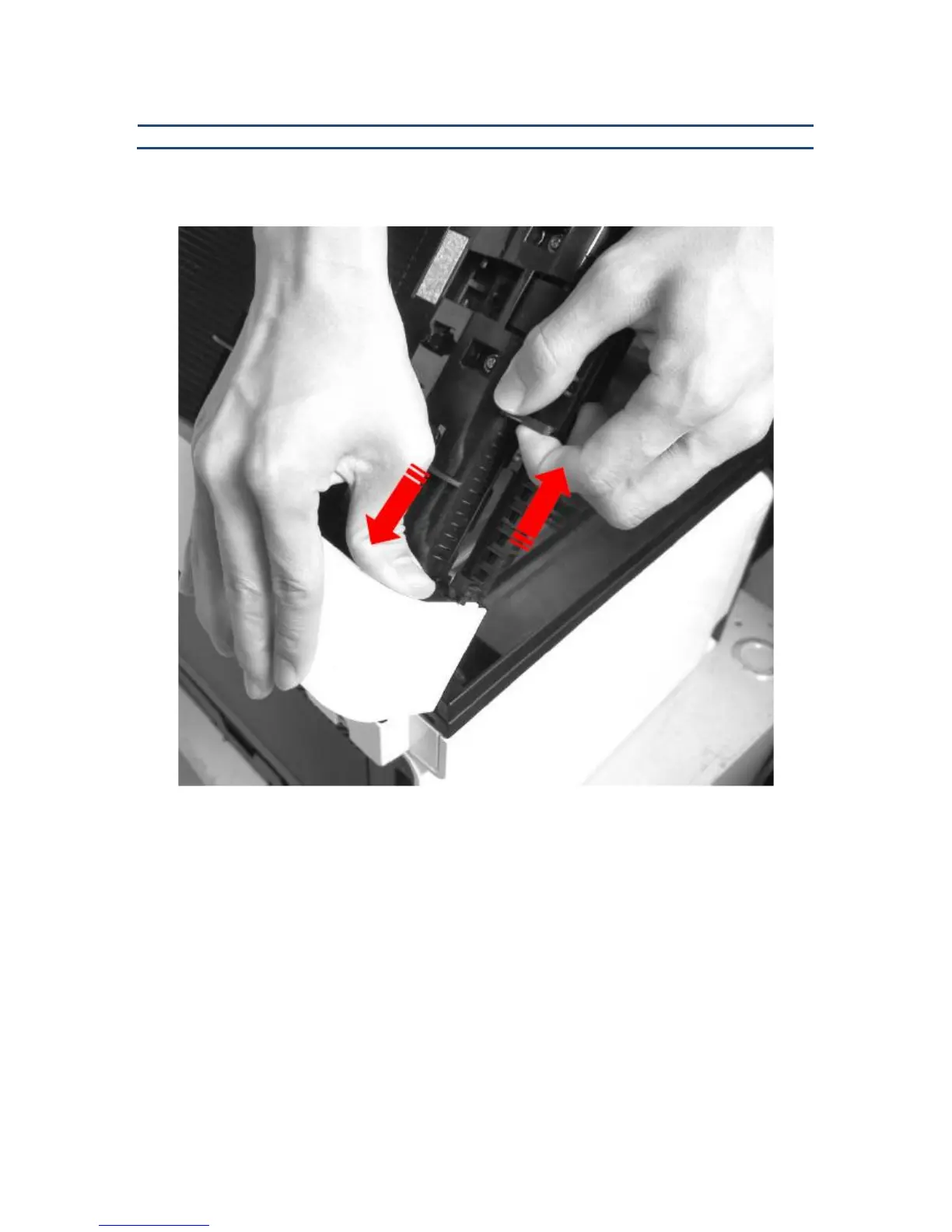

3. Push it to arrow direction to remove ADF idle guide.
