Main Driving Motor on main body always moves forward and the rotation force of main driving motor is
delivered to delivery shaft through delivery unit’s Fusing driving gear to rotate delivery shaft.
As Fusing driving gear always rotates forward, in order to print 2 sides by reversing delivery unit, the
forward/reverse bracket is operated by solenoid operation.

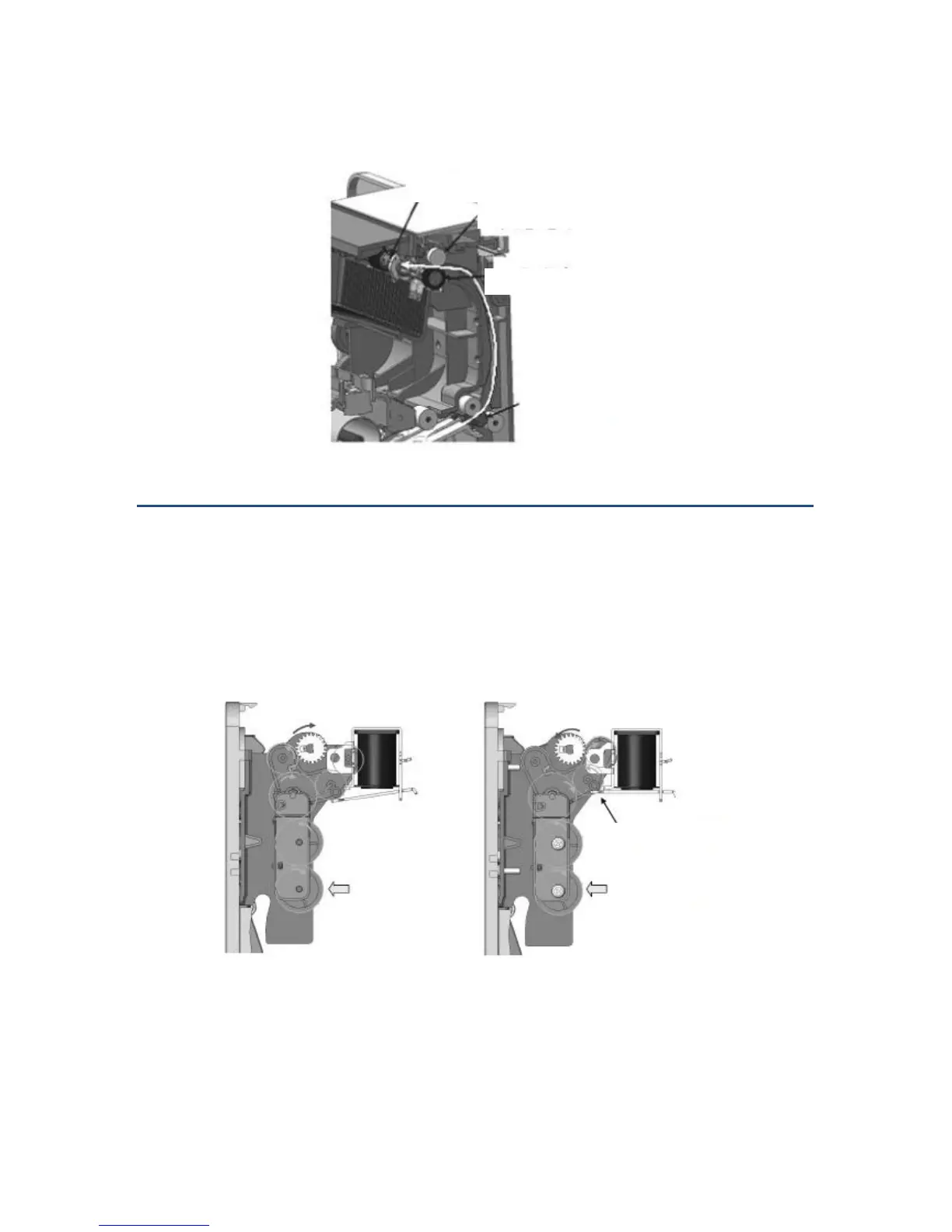

Below figure on the left shows that solenoid is turned off when rotating forward and 4 gears are
connected to rotate delivery shaft rotating forward.
The right figure shows that solenoid is turned on and 5 gears are connected to Fusing driving gear to
convert rotation in reverse.
Forward Rotation Reverse Rotation
