Sindoh M401 - MPT Paper Detection Sensor Removal; Pick Roll’s Top Body A’ssy Removal

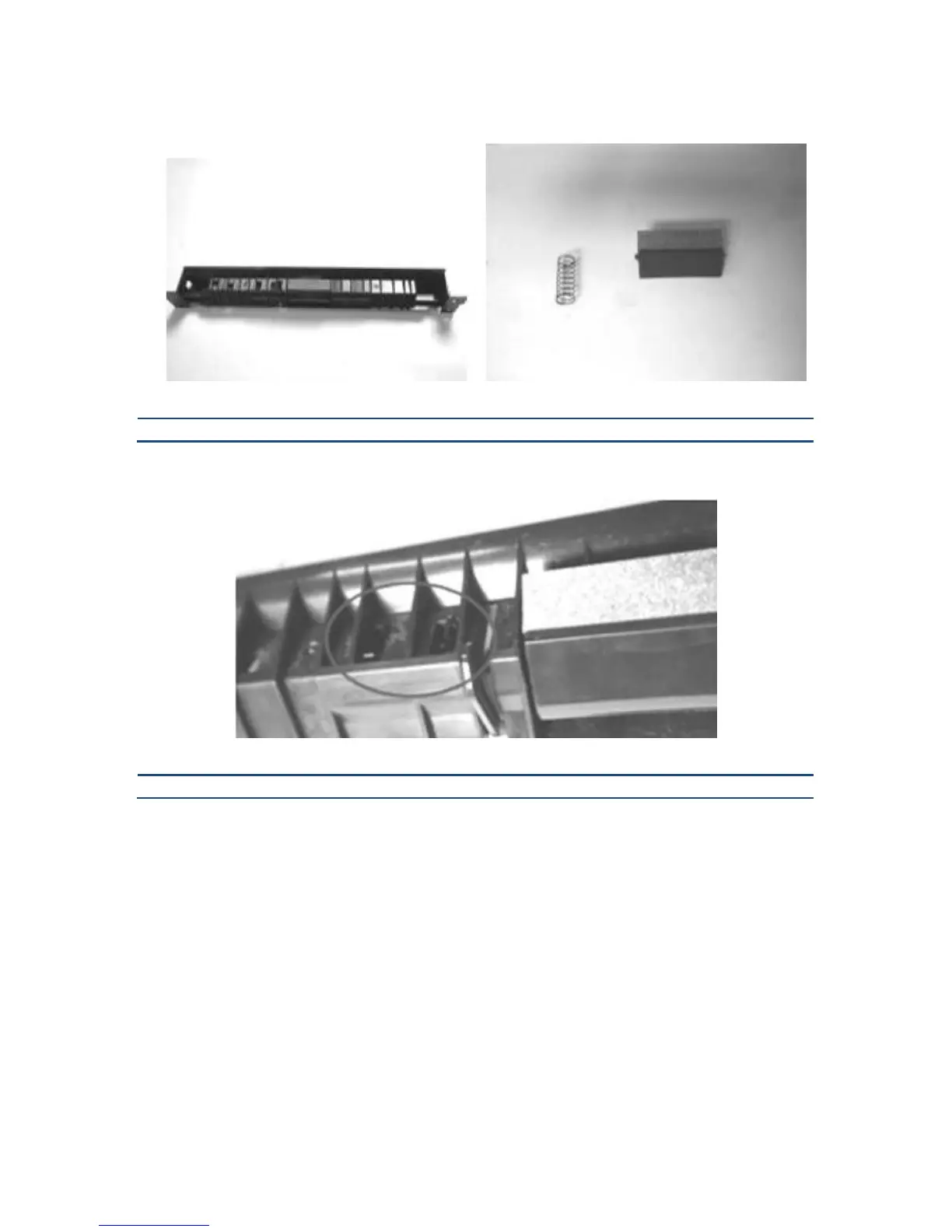

3. Separate MPT’s bottom body a’ssy to replace friction pad a’ssy.
MPT Paper Detection Sensor Removal
1. Separate MPT’s bottom body a’ssy.
2. Remove the hook on the side of friction pad to remove MPT paper detection sensor.
Pick Roll’s Top Body A’ssy Removal
1. Remove the front door.
2. Remove the segment gear and clutch a’ssy.
3. Remove the metal clamp [A] contacting with pick roll.
