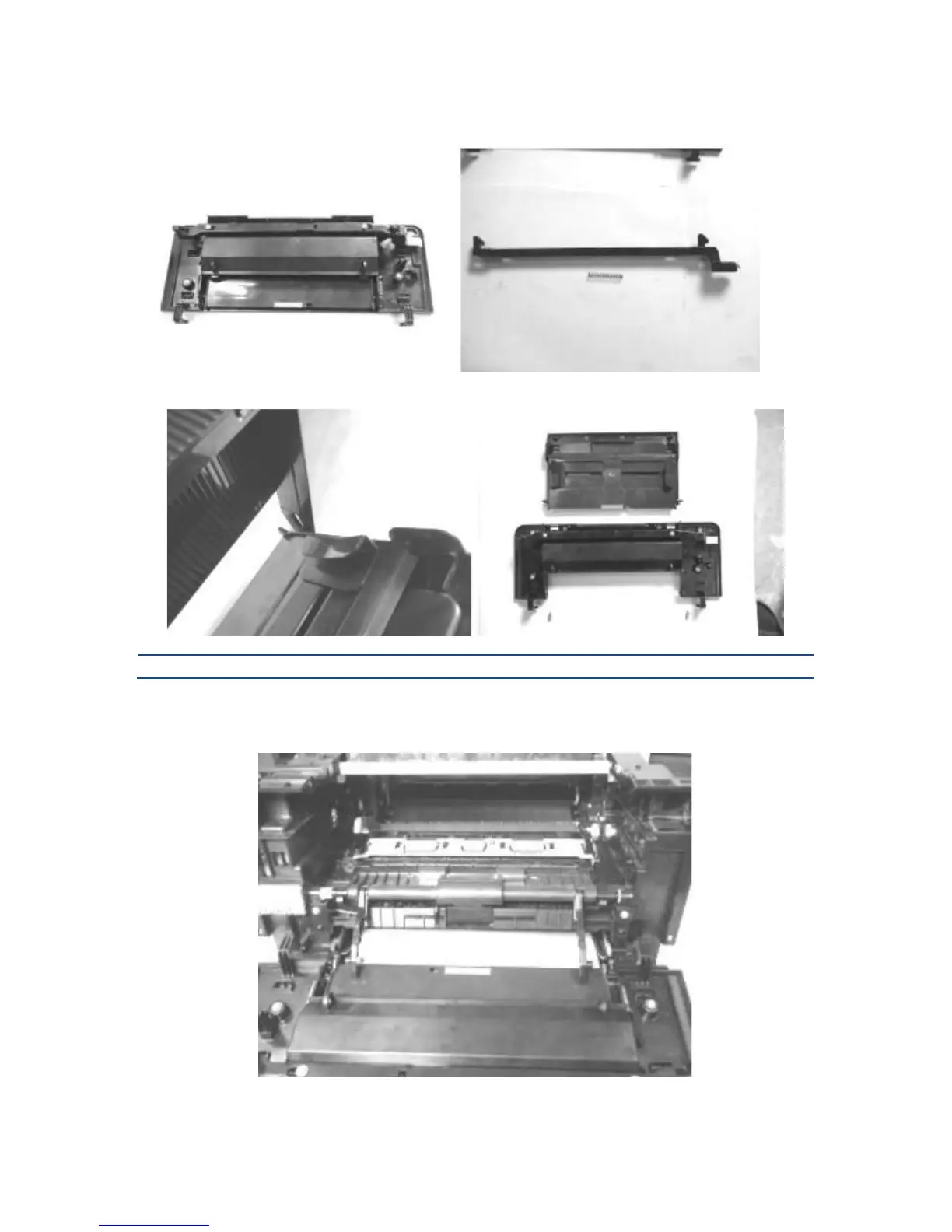

4. Separate MPT from the front door hole.

MPT’s Bottom Body A’ssy Friction Pad Replacement

1. Open the front door and remove 2 screws.

2. Separate the harness connected to the left Registration sensor.
