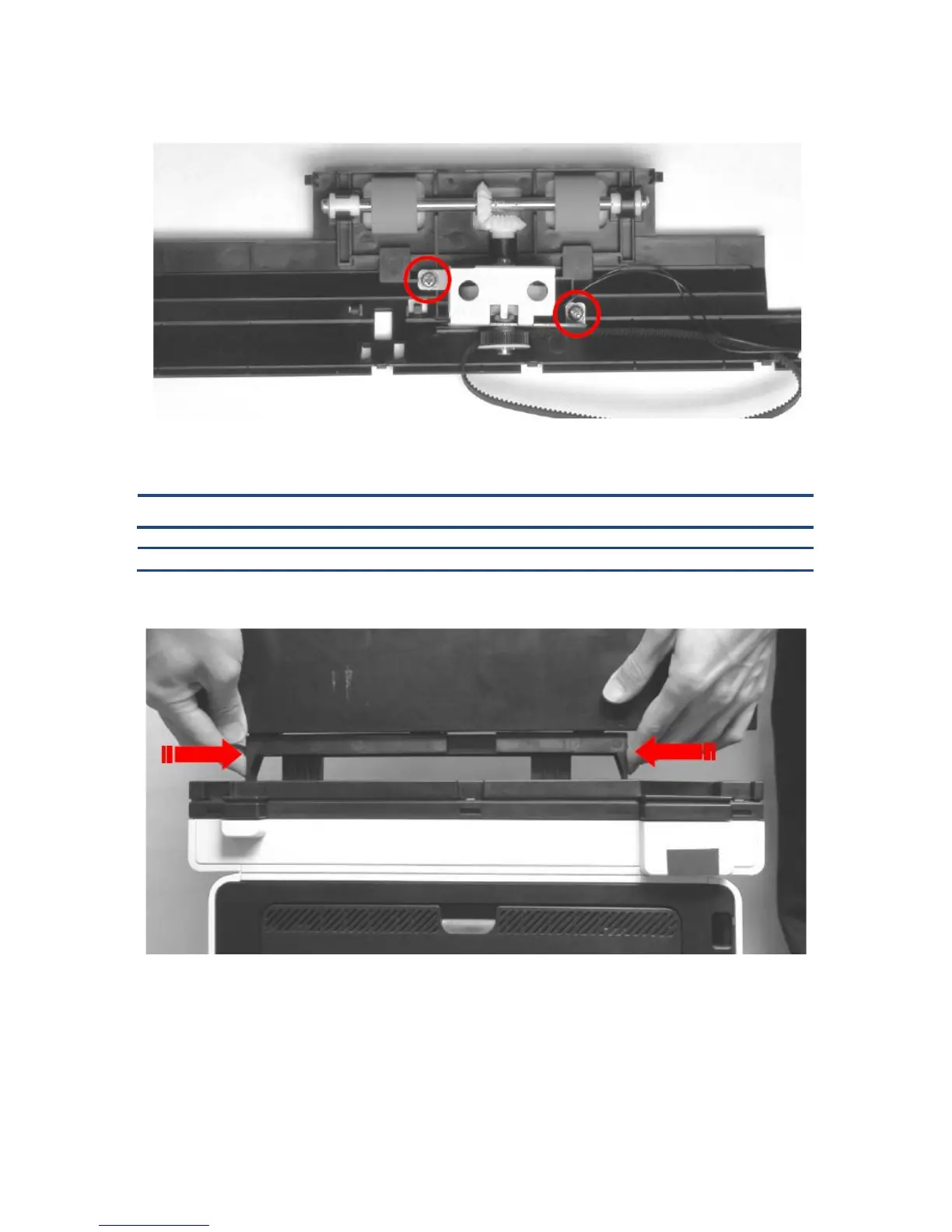

6. Remove 2 screws and A3 clutch assembly.

Scanner Flat Bed Unit

Scanner Flat Bed Assembly Removal

1. Completely open the scanner flat bed.

2. Press it to arrow directions to remove scanner flat bed assembly.
