1. Remove ADF assembly.
2. Remove ADF’s top cover.
3. Remove ADF’s front cover.
4. Remove ADF’s rear cover
5. Remove ADF Pick up Assembly
6. Remove ADF idle guide.
7. Remove ADF’s Document Tray Assembly

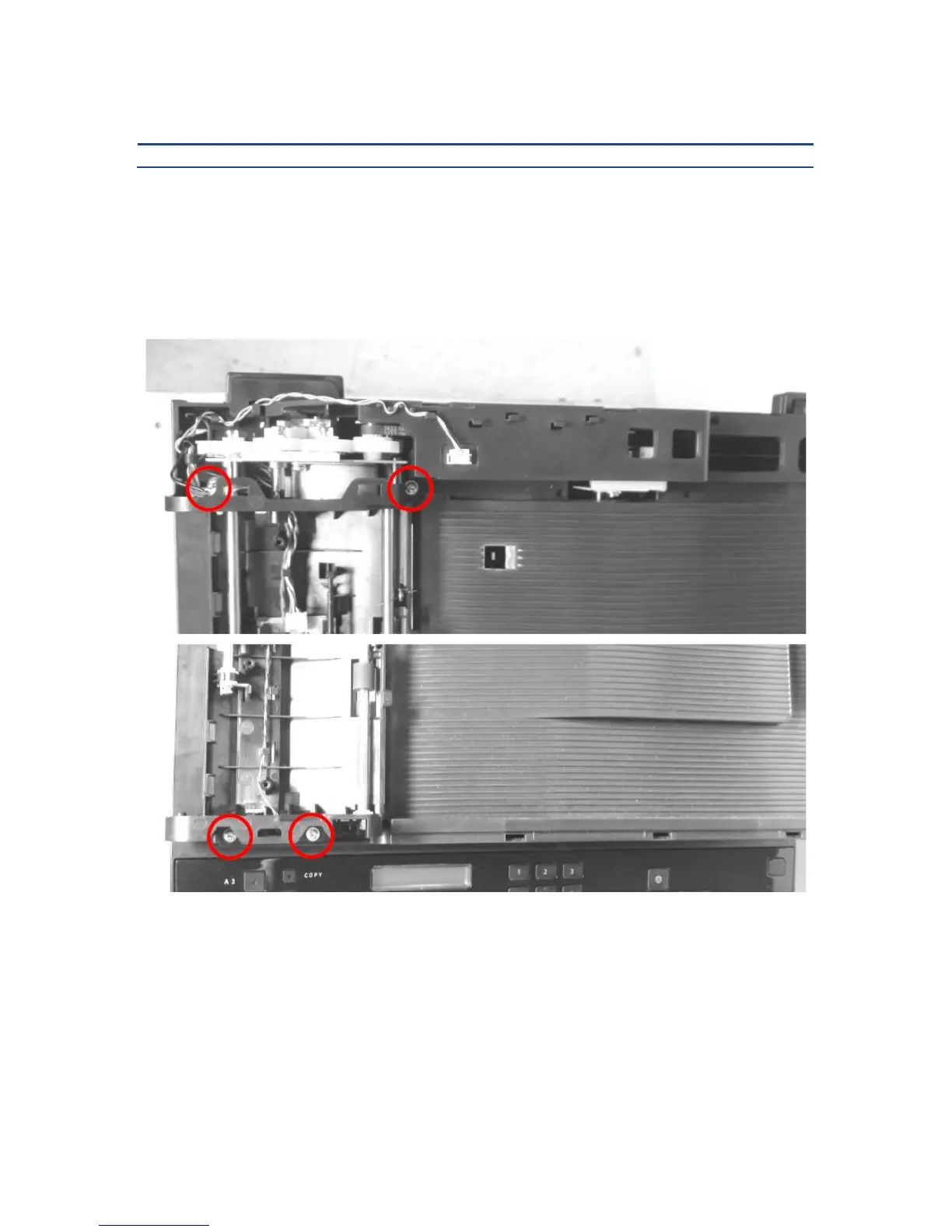

8. Remove 4 screws and lift ADF’s top guide and motor assembly.
