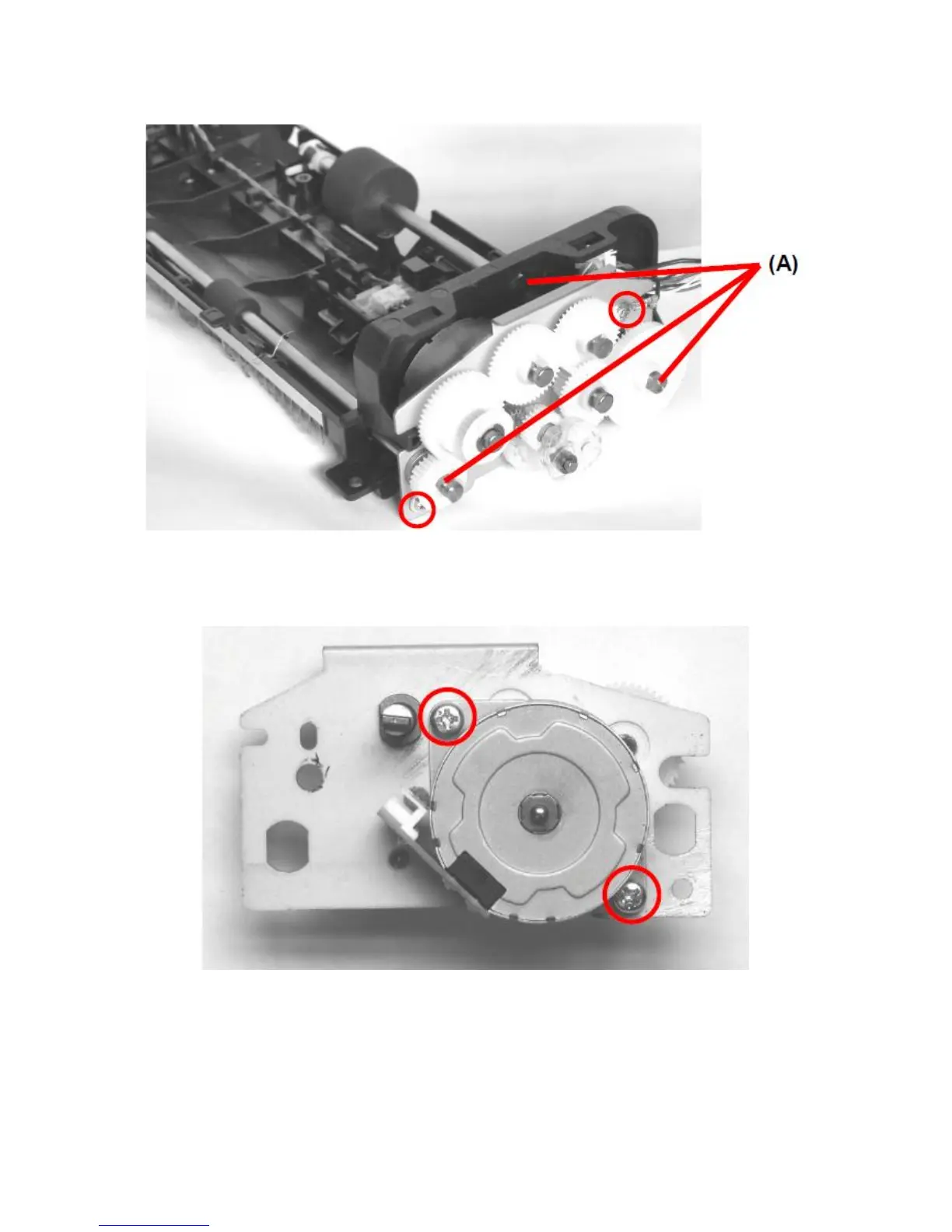

9. Remove 2 screws and unlock 3 hooks (A), and remove motor harness to remove ADF’s top guide and

motor assembly.

10. Remove 2 screws and remove the motor from gear bracket.
