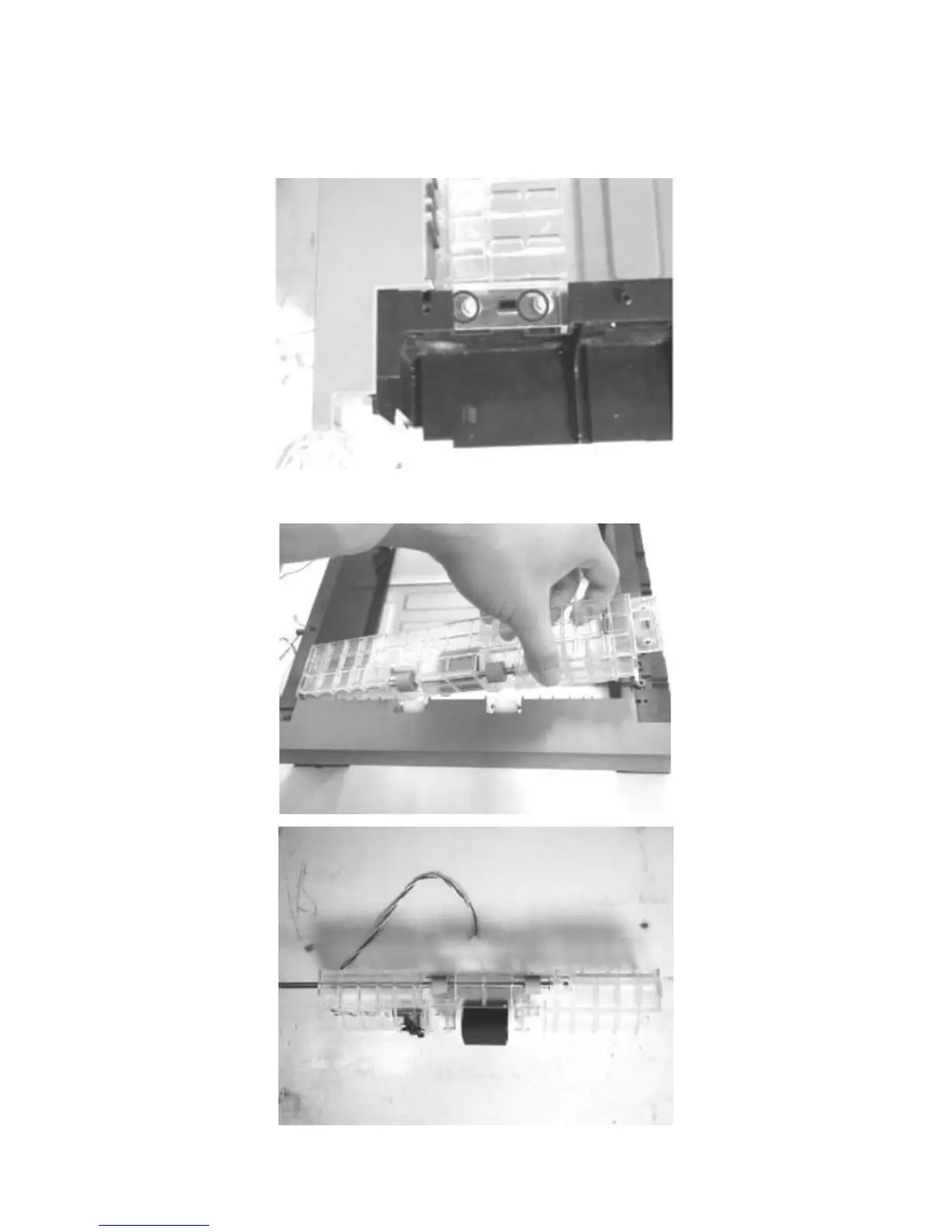

5. Remove 2 screws on the top right of pickup a’ssy.

6. Separate the pickup a’ssy. Pick the right side up to remove harness through the frame hole
