Sindoh M401 - Page 136

To Next Page

To Previous Page

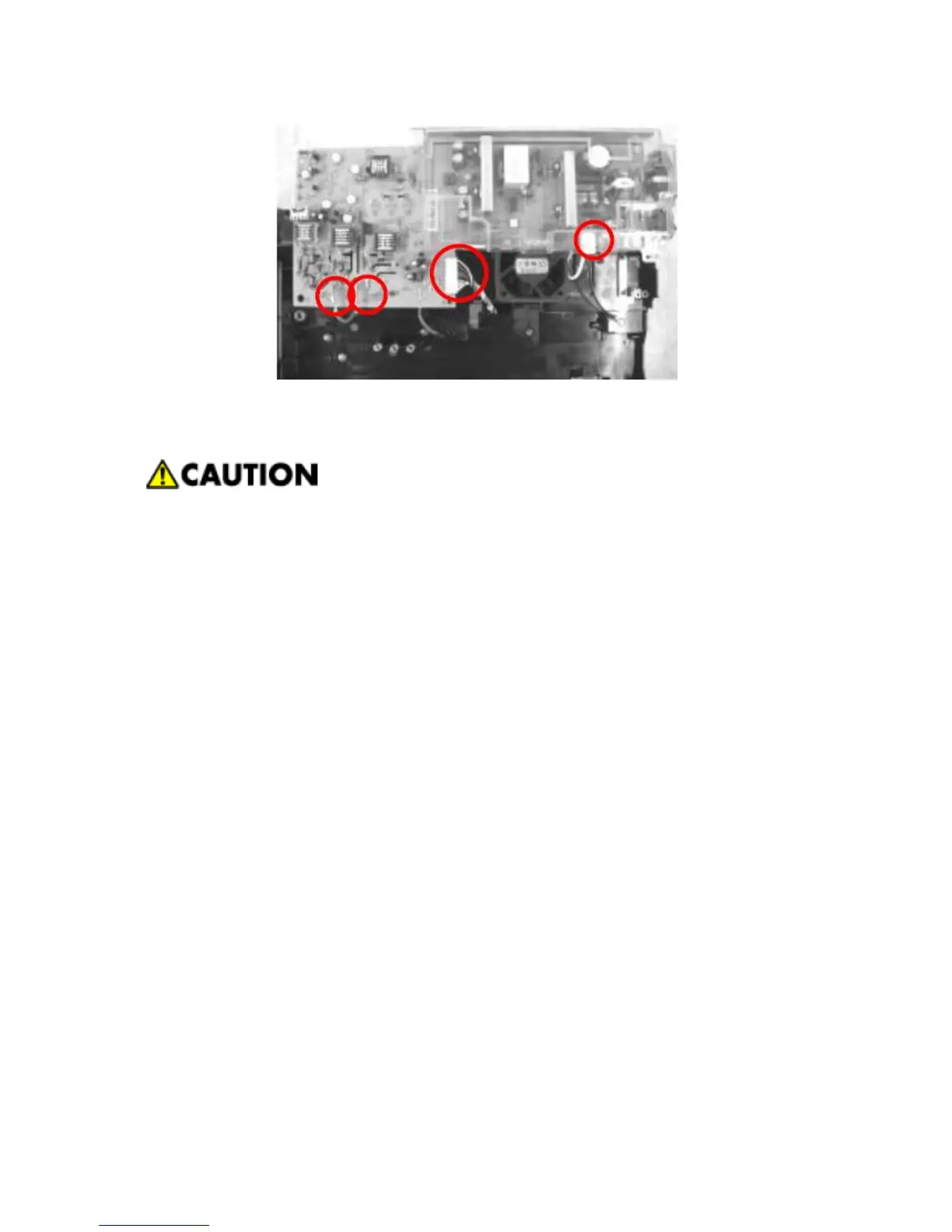

4. Separate 4 harnesses from the connector and remove PDU board.

 Be careful not to disconnect harness wires when removing the harness from the connector.

 When reassemble, take caution not to have the harness to get caught on the right cover hook.

Main Page

Service Manual1
