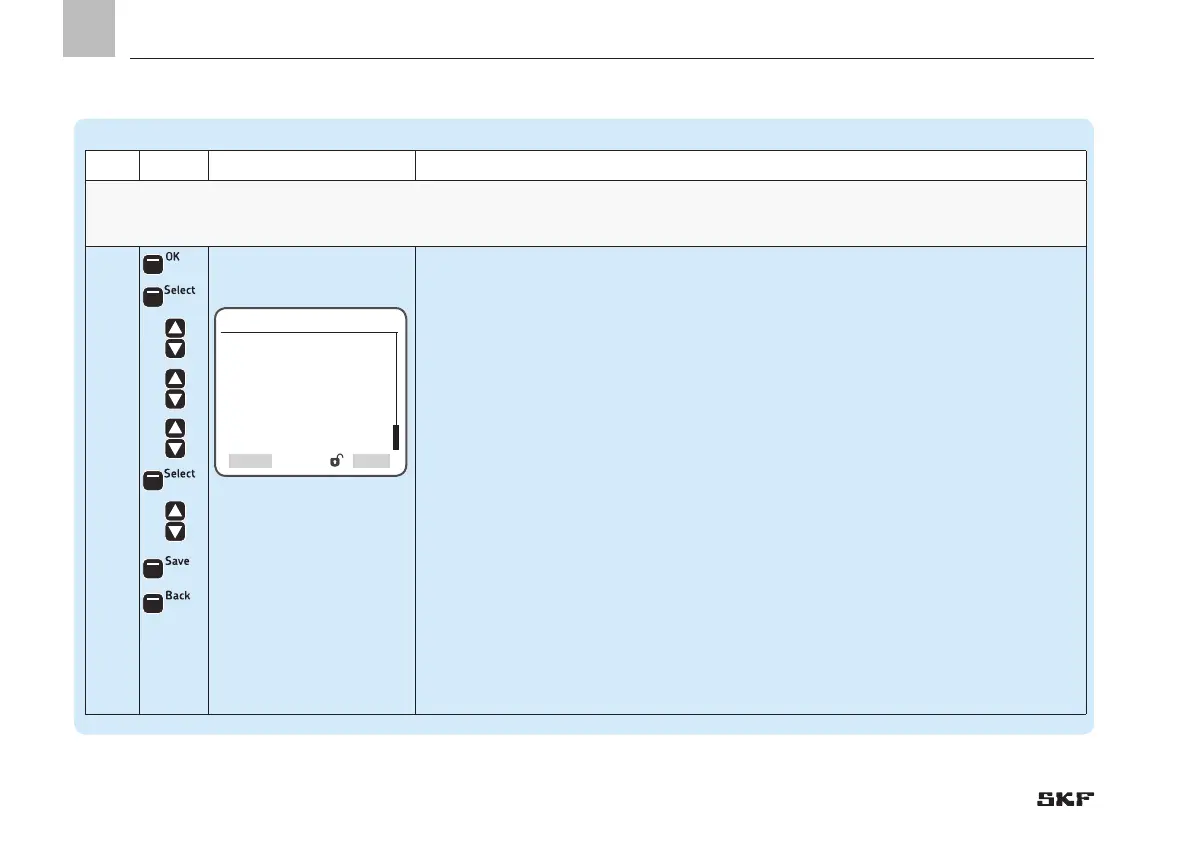

11. System configuration
Pump settings => Pump settings => Relief Settings (only for 3/2 zone valves)
Step Key Display Description
Relief Settings For zones with 3/2 directional solenoid valves (zone valves), the zone valves are actuated once again when the pump is off after a
complete lubricating cycle is finished (zone 1 to max. zone 3).Time-dependent relief of the main lubrication line (pump to zone valves) occurs.
4
Press <OK control key>
)You will enter the Relief Settings menu
The following settings are available:
Zone Relief Time
)Entry of the time value during which all zone valves are actuated
Pump Relief Time
Entry of the time value during which the pump is switched to pressure relief
Press <Select control key>
Use <down/up arrow key> to select Zone Relief Time
and/or:
Use <down/up arrow key> to select Pump Relief Time
Press <Select control key>
Use <down/up arrow key> to set the time frame
Press <Save control key>
Press <Back control key>
Relief Settings
Zone Relief Time
[ 0 ] s
Pump Relief Time
[ 0 ] s
SelectBack
EN
