SKF LMC 301 series User Manual

11. System configuration
Pump settings => Pump settings => Filling/Low Level =>Inputs

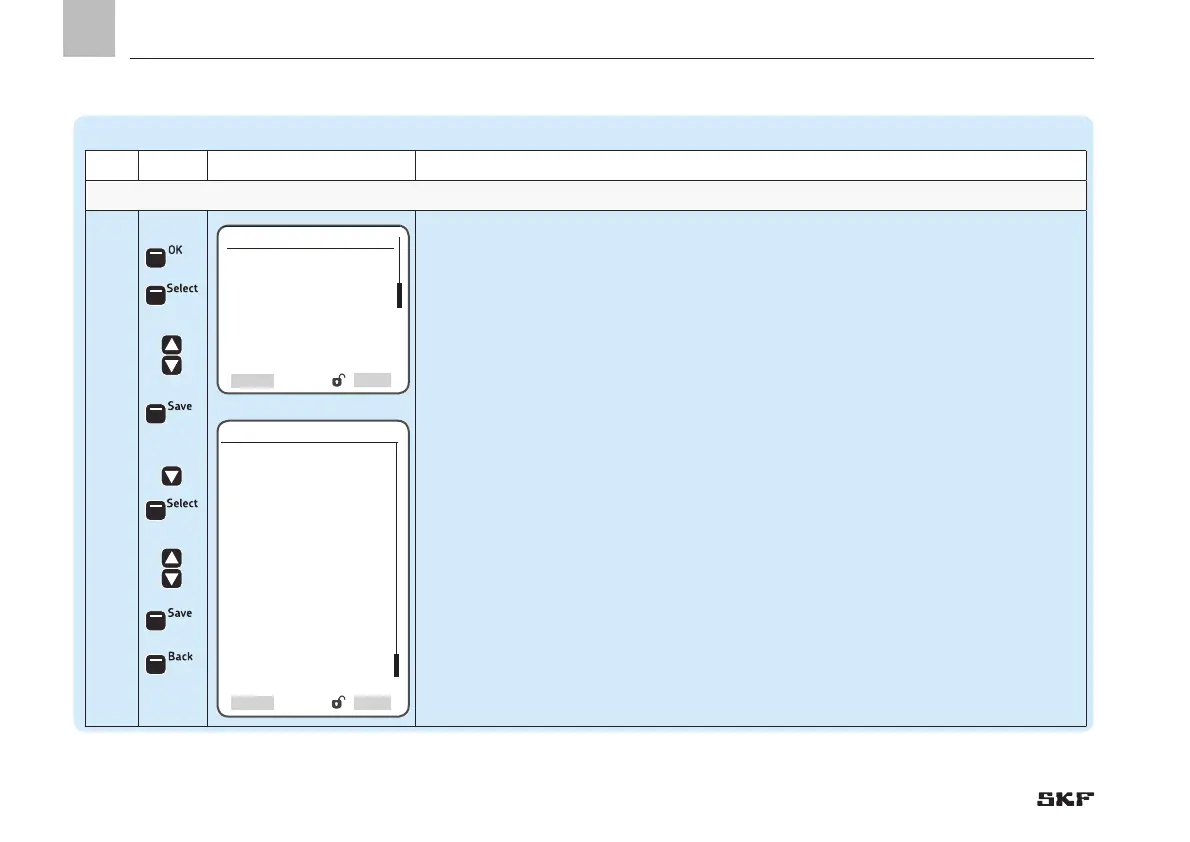

Step Key Display Description
Inputs
Selection of fill level switch - input type
5.3
• Press <OK control key>
)You will enter the Inputs menu
• Press <Select control key>
• Use <down/up arrow key> to select Output Type
The following settings are available:
o normally closed/normally open /disabled/transducer 4-20mA/transducer 0-20 mA/
transducer 2-10V/transducer 0-10V/transducer 1-6V
• Press <Save control key>
With transducer:
• Press <down arrow key>
)The following settings are available:
o Minimal Value
o Maximal Value
o Full Value
o Empty Value
o Critical Value
o Press <Select control key>
• Use <down/up arrow key> to enter the value
• Press <Save control key>
• Press <Back control key>
Inputs
Input No. LL Type
[normally open ]
Input No. Empty
[0.00 ] AI
LL Detection Mode
[intermitting]
Inputs
Input No. LL Type
[ transducer 4-20 mA ]
Input No. LL
[0.00 ] AI
Minimal Value
[000] %
Maximal Value
[000] %
Full Value
[000] %
Empty Value
[000] %
Critical Value
[000] %
Select
Back
SelectBack
EN
116
