SKF LMC 301 series User Manual

11. System configuration
Pump settings => Zone 1 Settings => Release/Counter => Lube Load

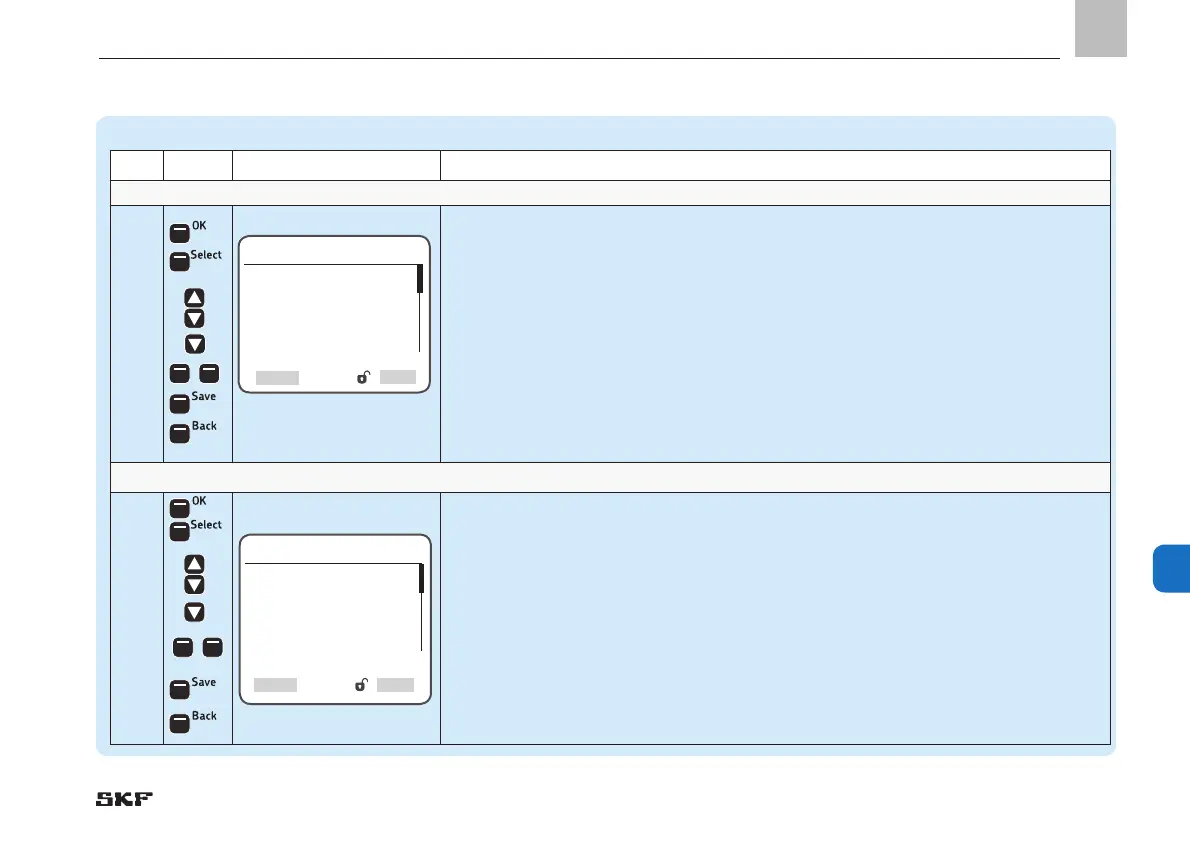

Step Key Display Description
Release/Counter Trigger the lubricating cycle
2.1
• Press <OK control key>
)You will enter the Release/Counter menu
• Press <Select control key>
• Use <down/up arrow key> in the Input Type menu to select normally closed, normally
open, counter, or disabled
)With normally closed or normally open contacts or counter:
• Press <down arrow key>
• Use <left/right arrow key> to enter the input No.
• Press <Save control key>
• Press <Back control key>
Lube Load Switch from Normal Cycle Set to Heavy Cycle Set (increased lubricant delivery)
2.2
• Press <OK control key>
)You will enter the Lube Load menu
• Press <Select control key>
• Use <down/up arrow key> in the Input Type menu to select normally closed, normally
open, or disabled
)With normally closed or normally open contacts:
• Press <down arrow key>
• Use <left/right arrow key> to enter the input No.
• Press <Save control key>
• Press <Back control key>
Release/Counter
Input Type
[normally closed]
Input No.
[1.00] DI
Lube Load
Input Type
[normally closed]
Input No.
[1.00] DI
SelectBack
SelectBack
Zone basic settings
EN
125
11
