SKF LMC 301 series User Manual

11. System configuration
Pump settings => Zone 1 Settings => Lube Control => Valve

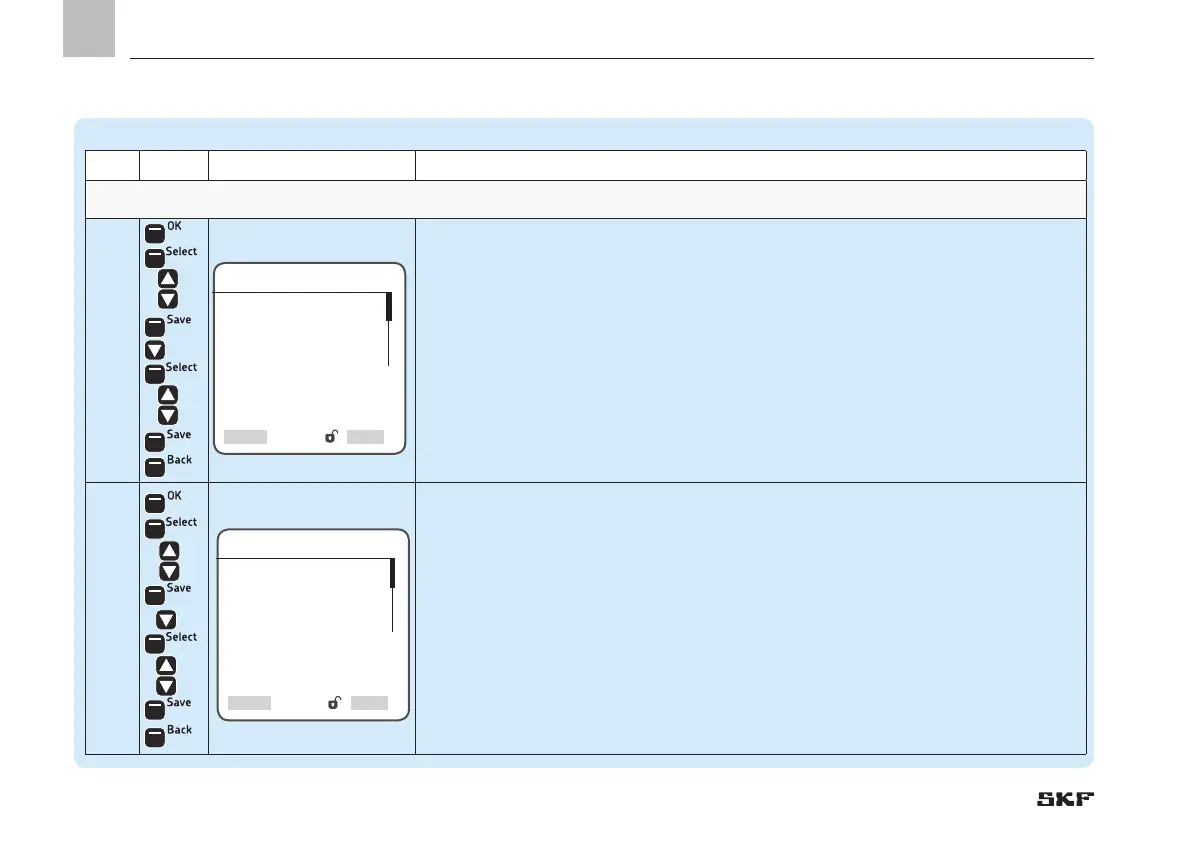

Step Key Display Description
Zone 1 settings/position valve B and valve M
1.2
• Use <OK arrow key> to select valve B (activate zone valve B)
• Press <Select control key>
• Use <down/up arrow key> to select between menu items normally open, normally
closed, or disabled
• Press <Save control key>
• Use <down arrow key> to select the Output No. menu item
• Press <Select control key>
• Use <down/up arrow key> to enter the output No.
• Press <Save control key>
• Press <Back control key>
1.3
• Use <OK arrow key> to select valve M (valve position zone valves depressurized)
• Press <Select control key>
• Use <down/up arrow key> to select between menu items normally open, normally
closed, or disabled
• Press <Save control key>
• Use <down arrow key> to select the Output No. menu item
• Press <Select control key>
• Use <down/up arrow key> to enter the output No.
• Press <Save control key>
• Press <Back control key>
Valve B
Output Type
[
<<normally open>><<normally closed>>
<<disabled>>
]
Output No.
[0.000]
Select
Back
Valve M
Output Type
[
<<normally open>><<normally closed>>
<<disabled>>]
Output No.
[0.000]
SelectBack
Settings with EM U3
EN
134
