SKF LMC 301 series User Manual

11. System configuration
Settings with EM U3
Pump settings => Zone 1 Settings => Lube Control => Pos. Valve A, Pos. Valve B

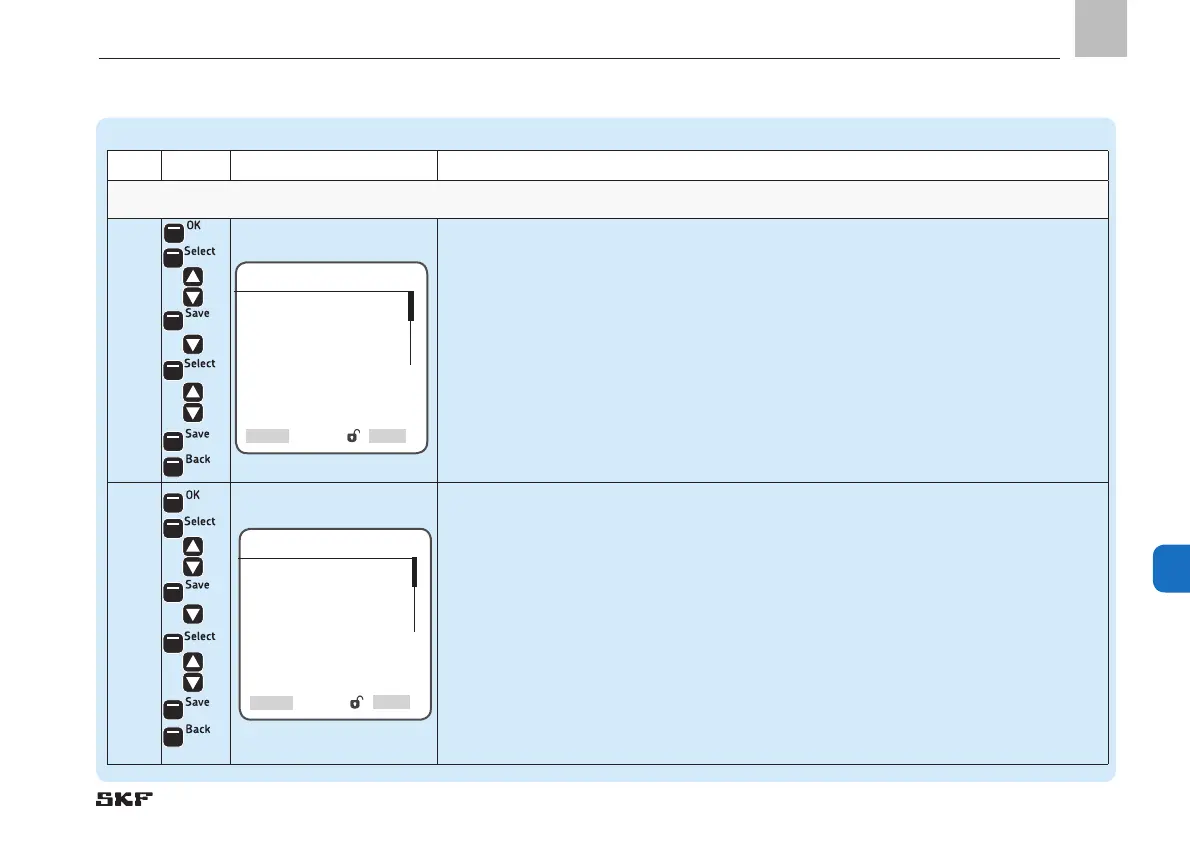

Step Key Display Description
Zone 1 settings/Check-back signals for change-over of valves A/B
1.4
• Use <OK arrow key> to select pos. valve A (check-back signal for change-over of valve A)
• Press <Select control key>
• Use <down/up arrow key> to select between menu items normally open, normally
closed, or disabled
• Press <Save control key>
• Use <down arrow key> to select the Input No. menu item
• Press <Select control key>
• Use <down/up arrow key> to enter the input No.
• Press <Save control key>
• Press <Back control key>
1.5
• Use <OK arrow key> to select pos. valve B (check-back signal for change-over of valve
B)
• Press <Select control key>
• Use <down/up arrow key> to select between menu items normally open, normally
closed, or disabled
• Press <Save control key>
• Use <down arrow key> to select the Output No. menu item
• Press <Select control key>
• Use <down/up arrow key> to enter the output No.
• Press <Save control key>
• Press <Back control key>
Pos. valve A
Output Type
[
<<normally open>><<normally
closed>> <<disabled>>
]
Input No.
[0.000]
Select
Back
Pos. valve B
Output Type
[
<<normally open>><<normally closed>>
<<disabled>>
]
Input No.
[0.000]
SelectBack
EN
135
11
