11. System configuration
Lube Control => Pos. Valve M => Press. Sensor at EOL

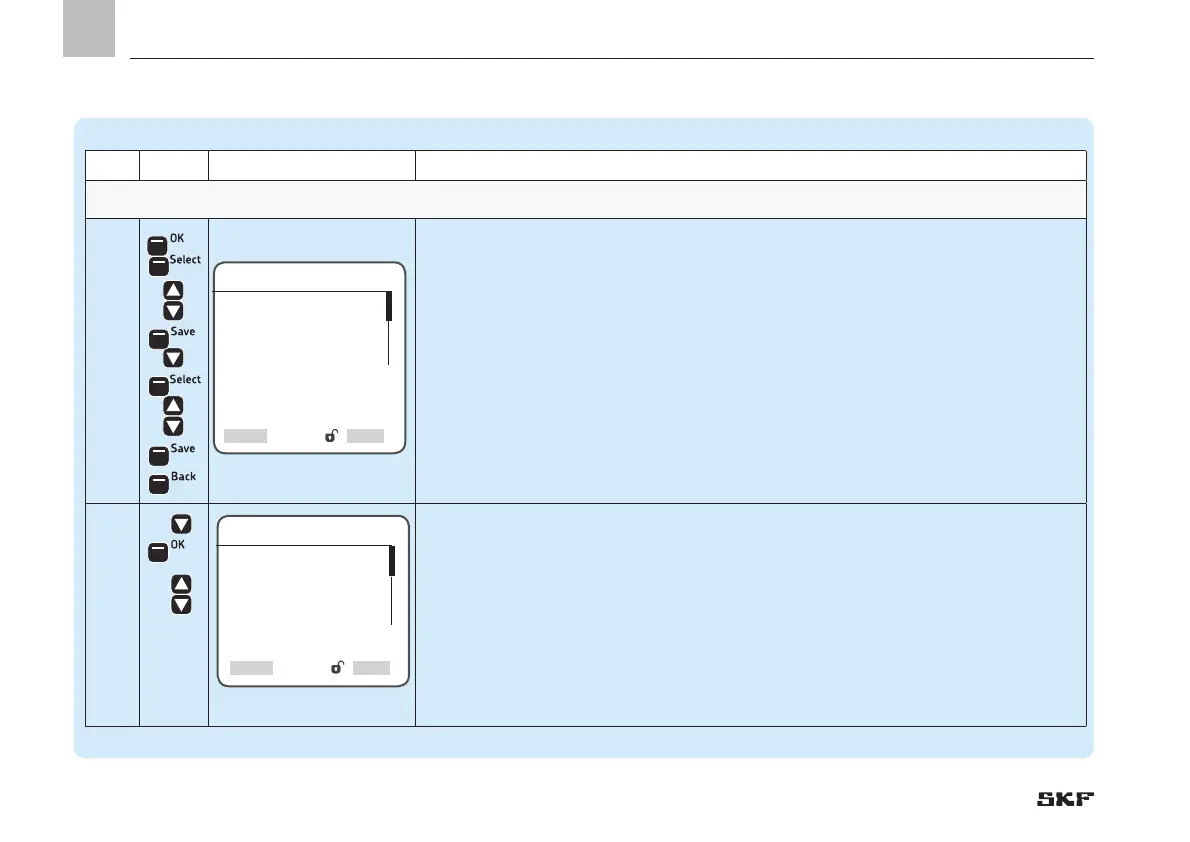

Step Key Display Description
Zone 1 settings/Check-back signals for change-over of valve M
1.6
• Use <OK arrow key> to select pos. valve M (check-back for valve B) for switching to
depressurized)
• Press <Select control key>
• Use <down/up arrow key> to select between menu items normally open, normally
closed, or disabled
• Press <Save control key>
• Use <down arrow key> to select the Input No. menu item
• Press <Select control key>
• Use <down/up arrow key> to enter the input No.
• Press <Save control key>
• Press <Back control key>
1.7
• Use <down arrow key> to select Press. Sensor at EOL
• Press <OK control key>
)The following settings are available:
o disabled / normally open / normally closed / transducer 0-10V / transducer 2-10V /
transducer 0-20mA / transducer 4-20mA / transducer 1-6V
• Use <down/up arrow key> to select the sensor type
Pos. valve M
Output Type
[
<<normally open>><<normally closed>>
<<disabled>>
]
Input No.
[0.000]
Select
Back
Press. Sensor at EOL
Sensor Type
[normally open]
Input
[1.01] AI
Select
Back
