SKF LMC 301 series User Manual

11. System configuration
Settings with EM U3
Lube Control => Press. Sensor at EOL

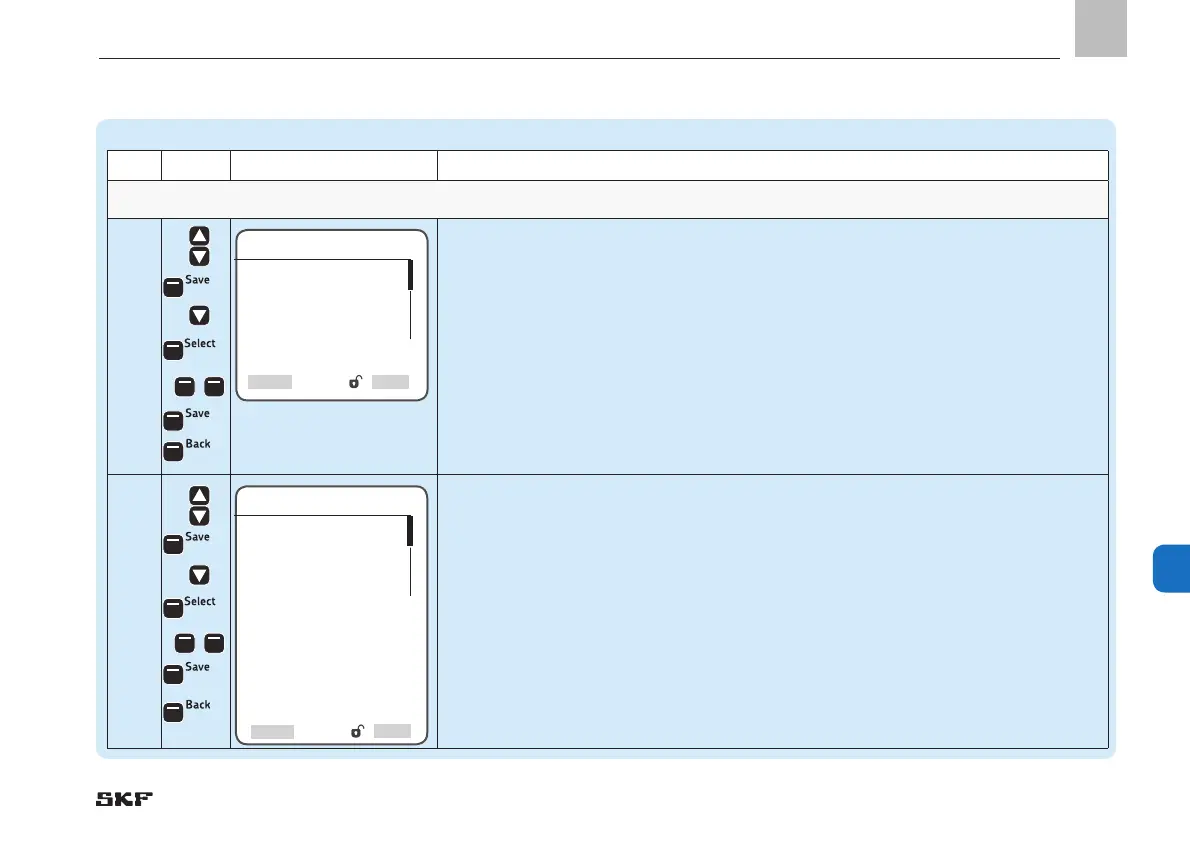

Step Key Display Description
Zone 1 Settings/Lube Control Zone 1 Pressure sensor at end of line (EOL)
1.7
With sensor selection as normally closed or normally open: (see page 41 for functional
description of transducer)
• Use <down/up arrow key> to select the sensor type normally closed or normally open
• Press <Save control key>
• Use <down arrow key> to select the Input menu item
• Press <Select control key>
• Use <right/left arrow key> to enter the Input No.
• Press <Save control key>
• Press <Back control key>
1.7
With sensor selection as transducer:
• Use <down/up arrow key> to select the sensor type transducer
• Press <Save control key>
• Use <down arrow key> to select the Input A menu item
• Press <Select control key>
• Use <right/left arrow key> to enter the Input No.
• Press <Save control key>
• Repeat entry for Input B
Press. Sensor at EOL
Sensor Type
[normally open]
Input
[1.01] AI
Select
Back
Press. Sensor at EOL
Sensor Type
[ << transducer 1-6V >>
<< transducer 4-20 mA >>
<<transducer 0-20mA >>
<<transducer 2-10V >>
<<transducer 0-10V>>
<< normally closed >> << normally
open >> <<disabled>>
]
Input A
[1.02] AI
Input B
[1.01] AI
Select
Back
