SKF LMC 301 series User Manual

6. Configuration by operator/local admin
Pump 1 Timings

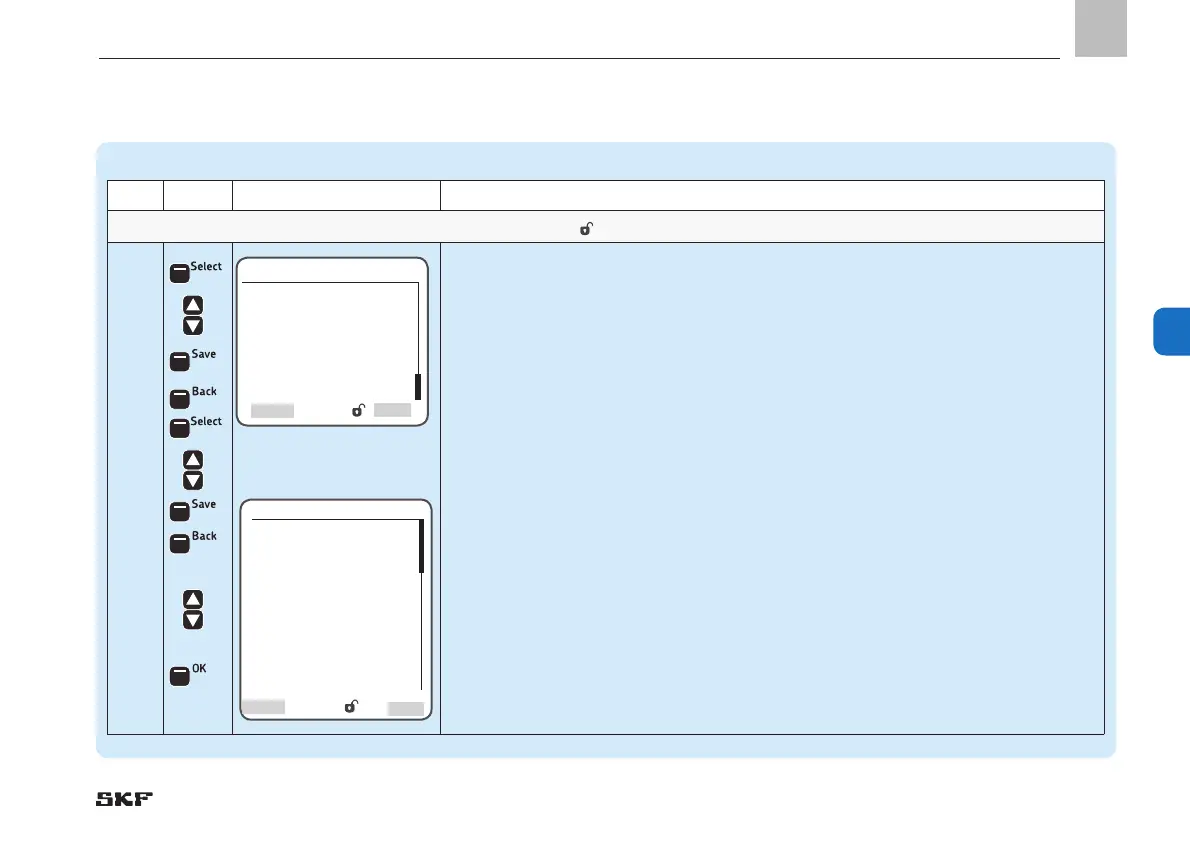

Step Key Display Description
Pump 1 Timings- with password level Local Admin or Supervisor
2
)You will enter the Pump 1 Timings menu.The following menu items are available:
Zone Relief Time
)Entry of the time value during which all zone valves are actuated
Pump Relief Time
• Entry of the time value during which the pump is switched to pressure relief
• Press <Select control key>
• Use <down/up arrow key> to select Zone Relief Time
and/or:
• Use <down/up arrow key> to select Pump Relief Time
• Press <Select control key>
• Use <down/up arrow key> to set the time frame
• Press <Save control key>
• Press <Back control key>
o Use <down/up arrow key> to select Zone 1 Settings
• Press <OK control key>
)You will enter the Zone 1 Settings menu.
Zone 1 Settings
Back
Select
Lube Load
[Normal Cycle Set]
Normal Cycle Time
[0000 : 00 : 00]
Heavy Cycle Time
[0000 : 00 : 00]
Monitoring Time
[00:00:00]
Holding Time
[00:00] s
Pump Timings
Zone Relief Time
[ 0 ] s
Pump Relief Time
[ 0 ] s
Select
Back
EN
59
6
