6. Configuration by operator/local admin

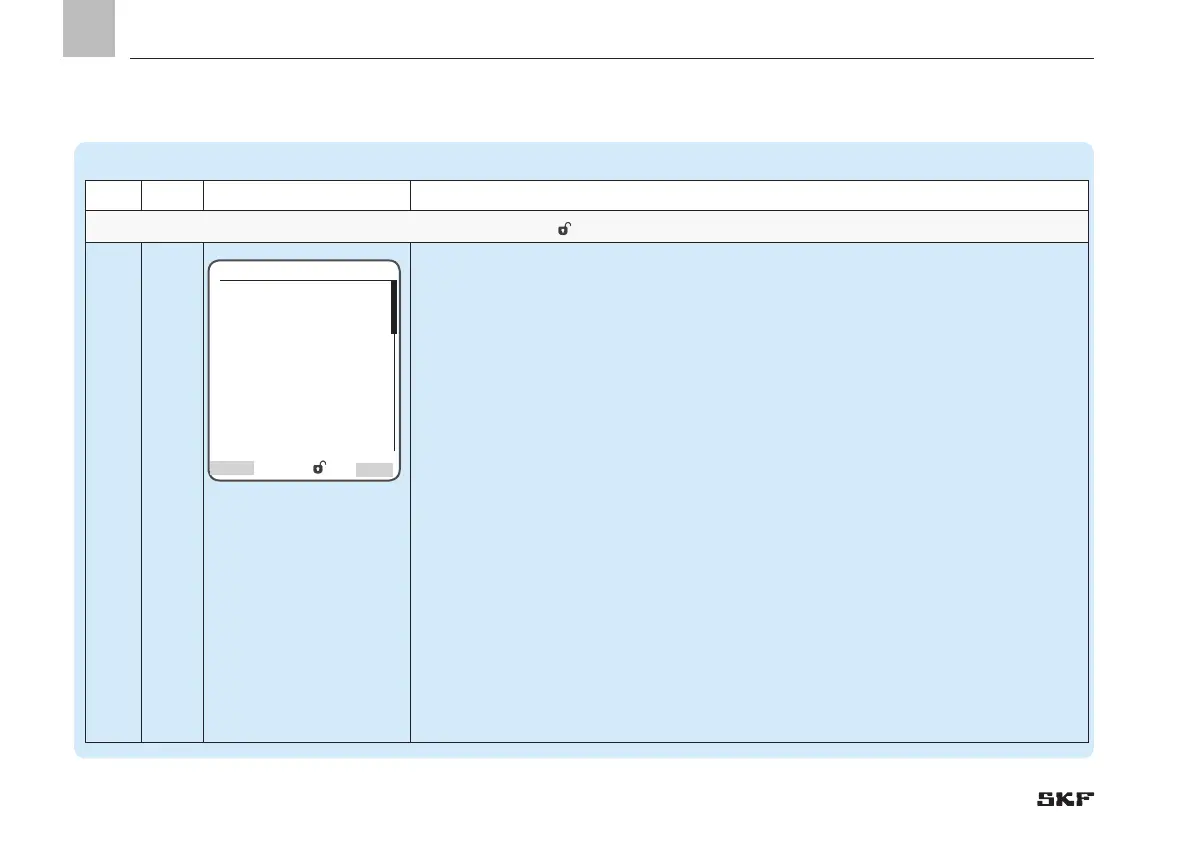

Pump 1 Timings
Step Key Display Description
Pump 1 Timings- with password level Local Admin or Supervisor
3
)The following menu items are available:
o Lube Load: Selection between Normal Cycle Set and Heavy Cycle Set. The two
lubrication settings differ in terms of the duration of cycle time.A longer lubrication time
is typically programmed for Heavy Cycle Set compared with Normal Cycle Set.
o Normal Cycle Time: Entry of the time unit for a normal lubrication process. The total
value to be entered consists of pump cycle time+holding time+interval time. The lubri-
cation time is the time required by the lubrication system to build up pressure in the
respective zone until all distributors in the zone have actuated or reversed. The interval
time is the time differential between the set cycle time and the required pump cycle time
+ holding time.The entry is in hours/minutes/seconds.
o Heavy Cycle Time: Entry of the time unit for a lubrication process with increased lubri-
cant demand. The heavy cycle time has the same structure as the normal cycle time. The
entry is in hours/minutes/seconds.
o Monitoring Time: Monitoring of lubrication time. Pressure build-up must be completed
within the monitoring time (time slot).
o Holding time: After the end of the pump cycle time, the controller switches off the pump,
though pressure relief by the zone valves is delayed by the holding time.The entry is in
minutes and seconds.
Zone 1 Settings
To Next Page
