6. Configuration by operator/local admin
Pump 1 Timings

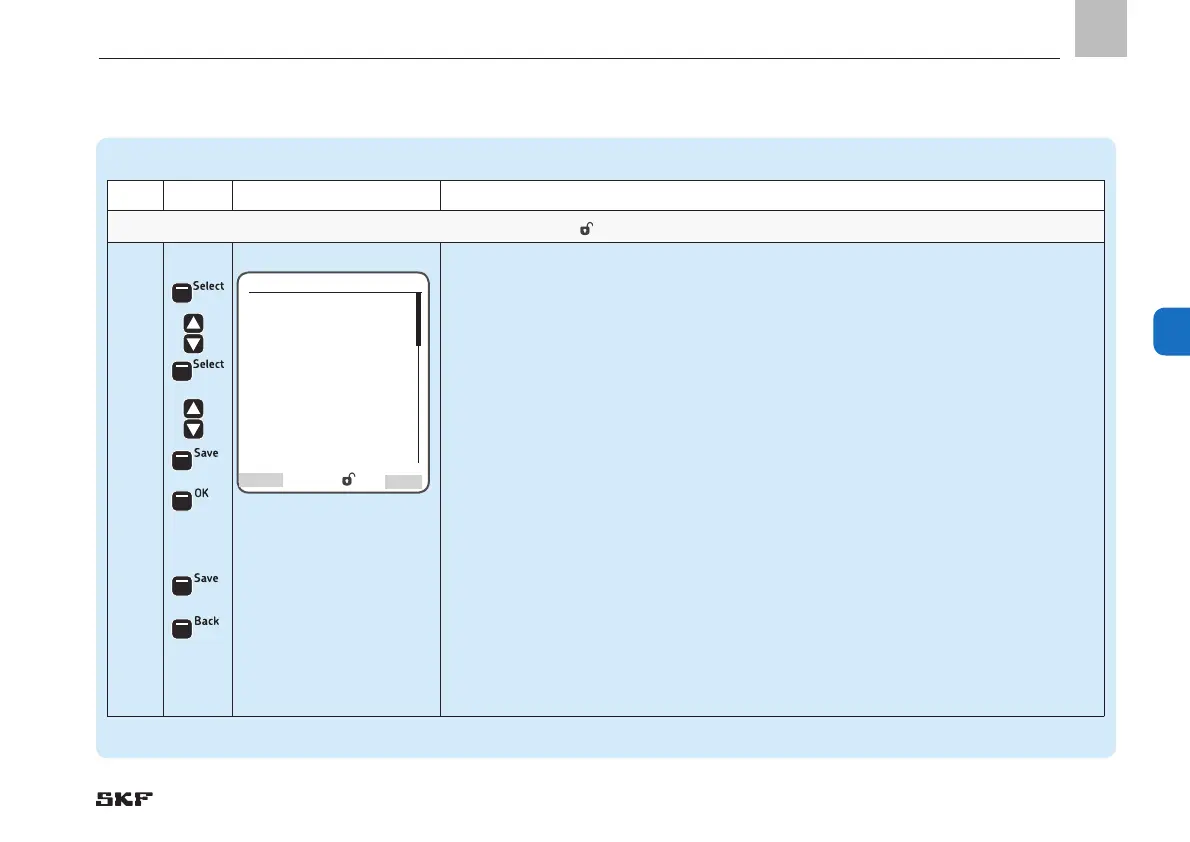

Step Key Display Description
Pump 1 Timings- with password level Local Admin or Supervisor
3
o Use <down/up arrow key> to select Zone 1 Settings
• Press <Select control key>
• Use <down/up arrow key> to select Normal Cycle Set (or Heavy Cycle Set)
• Press <Select control key>
• Use <down/up arrow key> to select between Normal Cycle Set /Heavy Cycle Set
• Press <Save control key>
• Use <down arrow key> to select the Normal Cycle Time menu item
• Press <Select control key>
• Use <down/up arrow key> to enter an eight-digit cycle time [hhhh:mm:ss]
)Press <OK control key> to advance to the next digit
• Use <down arrow key> to select the Heavy Cycle Time menu item
• Press <Select control key>
• Use <down/up arrow key> to enter an eight-digit Heavy Cycle Time [hhhh:mm:ss]
• Press <Save control key>
• Repeat the process for menu items Monitoring Time and Holding Time
• Press <Save control key>
• Press <Back control key>
Zone 1 Settings
Back
Select
Lube Load
[Normal Cycle Set]
Normal Cycle Time
[0000 : 00 : 00]
Heavy Cycle Time
[0000 : 00 : 00]
Monitoring Time
[00:00:00]
Holding Time
[00:00] s
