Pump 1 Timing and Cycle Control

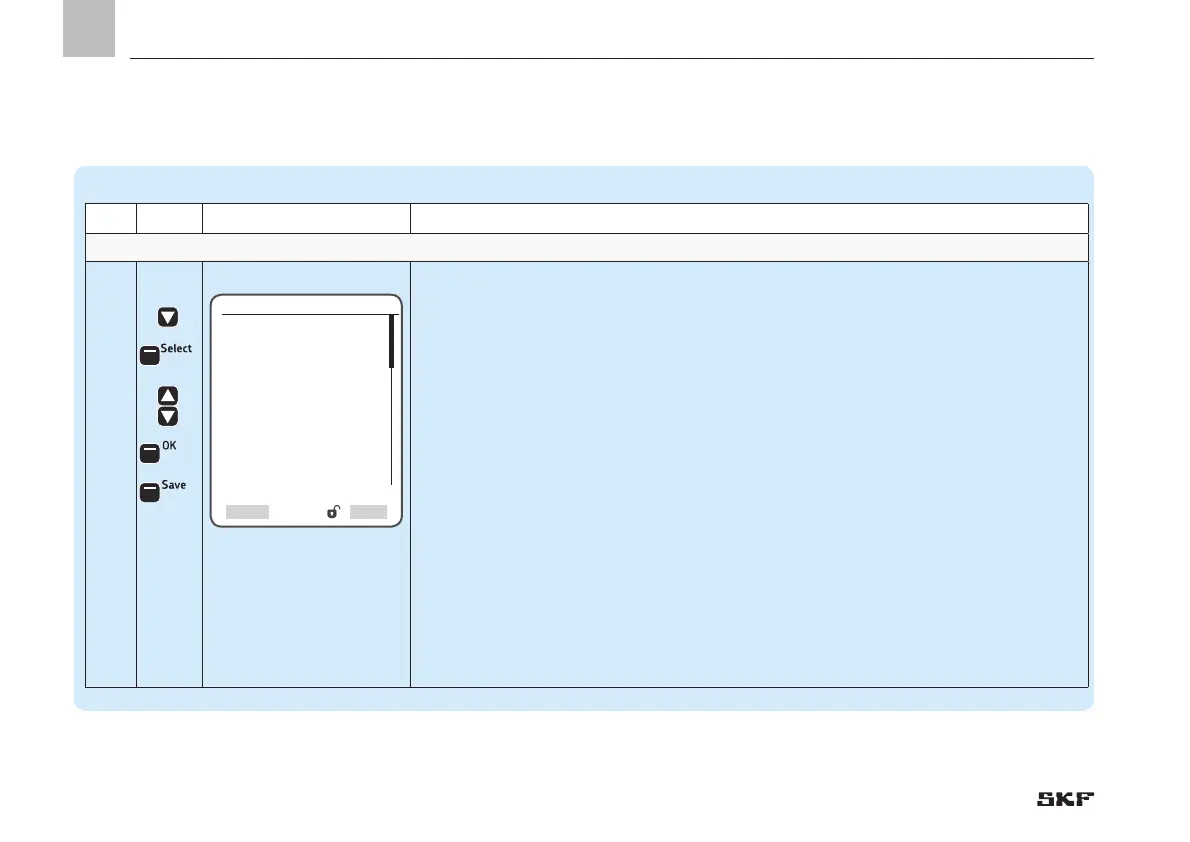

Step Key Display Description
Pump 1 Timing User Settings
2
• Use <down arrow key> to select the Heavy Cycle Time menu item
• Press <Select control key>
• Use <down/up arrow key> to enter an eight-digit cycle time [hhhh:mm:ss]
)Press <OK control key> to advance to the next digit
• Press <Save control key>
• Use <down arrow key> to select the Monitoring Time menu item
• Press <Select control key>
• Use <down/up arrow key> to enter a six-digit cycle count [hh:mm:ss]
)Press <OK control key> to advance to the next digit
• Press <Save control key>
• Use <down arrow key> to select the Holding time menu item
• Press <Select control key>
• Use <down/up arrow key> to enter a four-digit cycle count [mm:ss]
)Press <OK control key> to advance to the next digit
• Press <Save control key>
Zone 1 Settings
SelectBack
Lube Load
[Normal Cycle Set]
Normal Cycle Time
[0000:00:00]
Heavy Cycle Time
[0000:00:00]
Monitoring Time
[00:00:00]
Holding Time
[00:00 ]
