Guided Component Tests Operation
93
11.3.1 Component Information
Component Information provides (if available) specific operational information on
the selected component, and may also include electrical connector and pin location
and function details
z To view component information:
1. Select a component.
2. Select Component Information from the Component Test menu

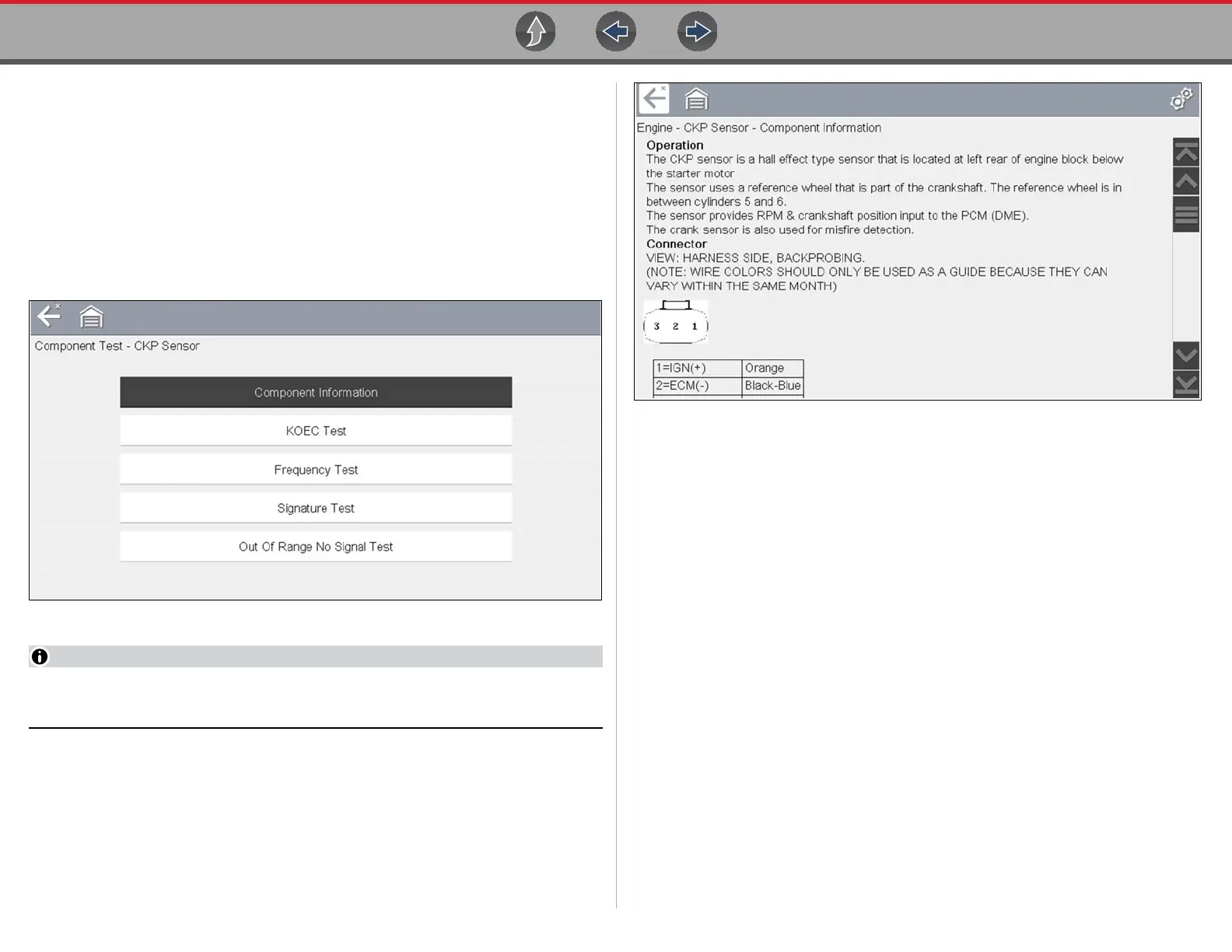

(Figure 11-5).
Figure 11-5 Component Tests Menu
An additional selection may be required for some components (e.g. selecting
front or rear for an oxygen sensor (O2S).
Component Information is displayed (Figure 11-6).
Figure 11-6 Component Information Screen
Screens are divided into sections to quickly guide you to the correct
information (available sections and information will vary):
• Operation—provides a general description of component operation.
• Tech note—provides component related tips (e.g. common failures or faults),
additional information may include OEM service updates and recall
information.
• Connector—displays illustrated electrical connectors and socket/pin
identification.
• Location—provides component locations, testing tips, and alternate testing
locations if available.
Use the scroll bar to view additional information.
3. Select Back on the Toolbar, or press the N/X button, to return to the
component menu.
