Intelligent Diagnostics Guided Component Tests (GCTs)
66
8.9 Guided Component Tests (GCTs)
Selecting the Guided Component Tests card (Figure 8-16) opens the Components
Tests main menu (Figure 8-17), which displays a menu list of tests related to the
troubleshooting of the selected codes.
Intelligent Diagnostics Guided Component Tests operation and navigation is similar
to the main Guided Component Tests function accessed from the Home screen. For
additional information see Guided Component Tests on page 88.

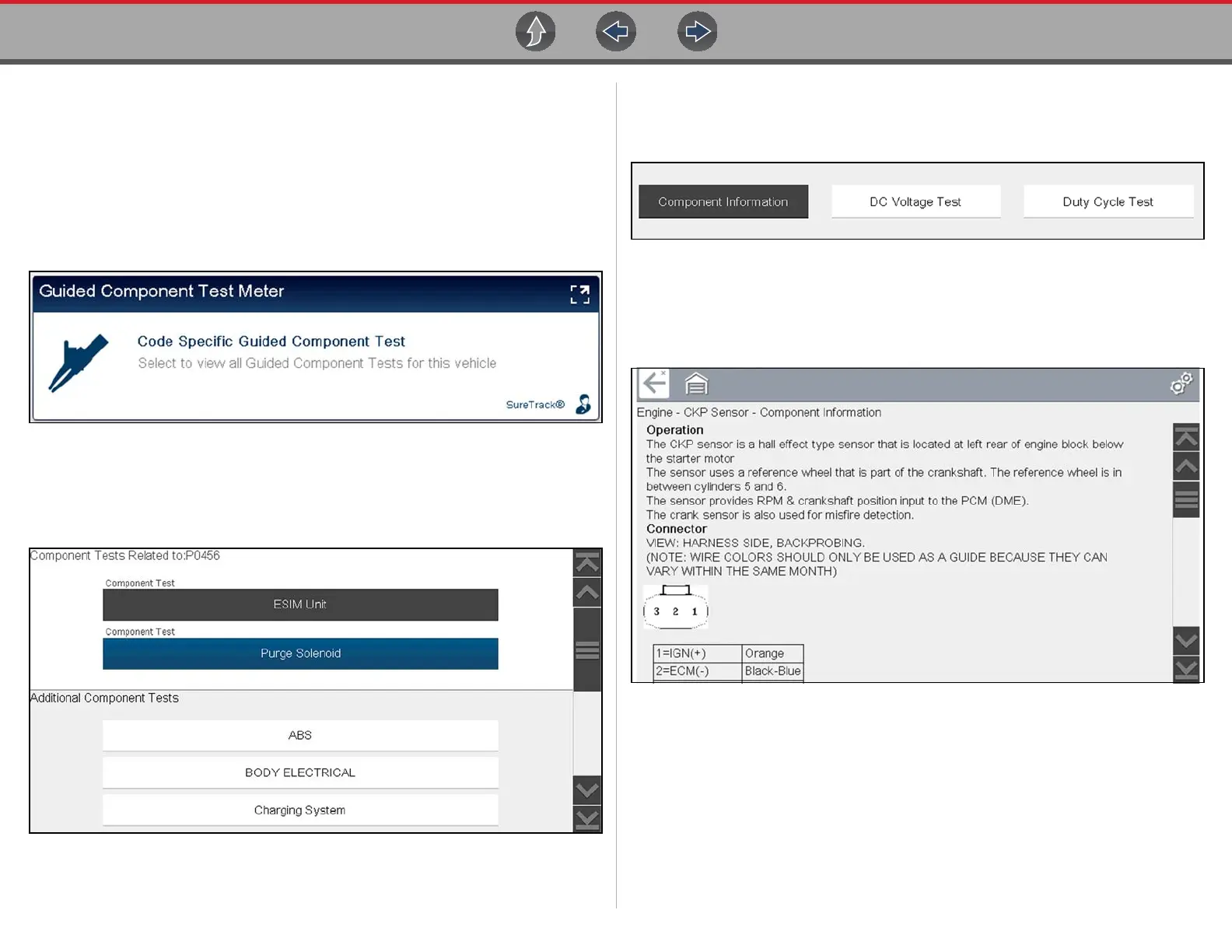

Figure 8-16
Additional Component Tests may be displayed at the bottom of the screen
(Figure 8-17) depending on the vehicle. These options are not DTC related, but are
vehicle specific related, and may be useful in troubleshooting or validating repairs.
Figure 8-17
After a test is selected a component test sub-menu opens. The component test
sub-menu may include various test options and a Component Information selection
(Figure 8-18) if supported.
Figure 8-18
Guided Component Tests provide you with step-by-step instructions to guide you
through the process of performing component tests. They may include component
information and specifications (Figure 8-19).
Figure 8-19
Some tests may also automatically configure the multimeter or lab scope to perform
the selected test (Figure 8-20). For additional information on using these functions,
see Guided Component Tests on page 88.
