2 - Rear Connector Panel Removal
• Either follow instruction #1 for full base plate removal or just remove the back row of base plate screws to leave the base
plate in place (all of the following illustrations show the base plate removed, regardless of whether it is essential to access
t
he assemblies concerned).
• Using a #1 Pozidrive screwdriver, remove the 19 pan head Pozi screws from the edge of the rear panel.

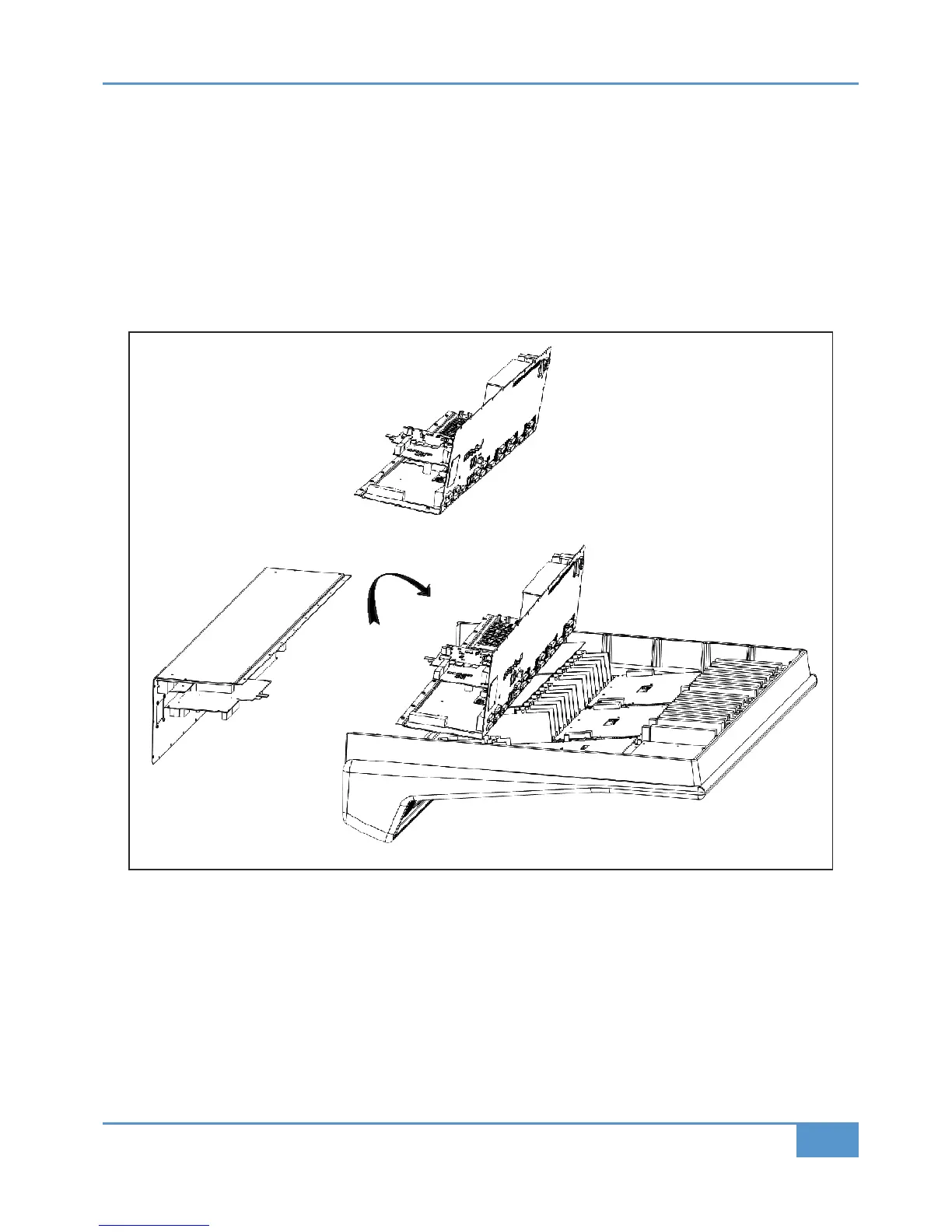

• Slide the panel away from the console slightly and then rotate the panel so that the connectors lay against the underside
of the console.
• Align the holes in the rear panel with the inserts on the base of the console and secure in place with two of the previously
removed pan head screws.
Appendix G - Service
137
Matrix
2
Owner’s Manual
