Solid State Logic Matrix 2 User Manual

3 - 629940XC Fader Replacement
• Remove fader knob cap from the fader to be replaced.
• Loosen but do not remove the two hex screws located at the top and bottom of the fader on the front panel.
•
Follow instruction #1 for base plate removal.
•
Unplug the two connectors from the fader to the 629502XA assembly.

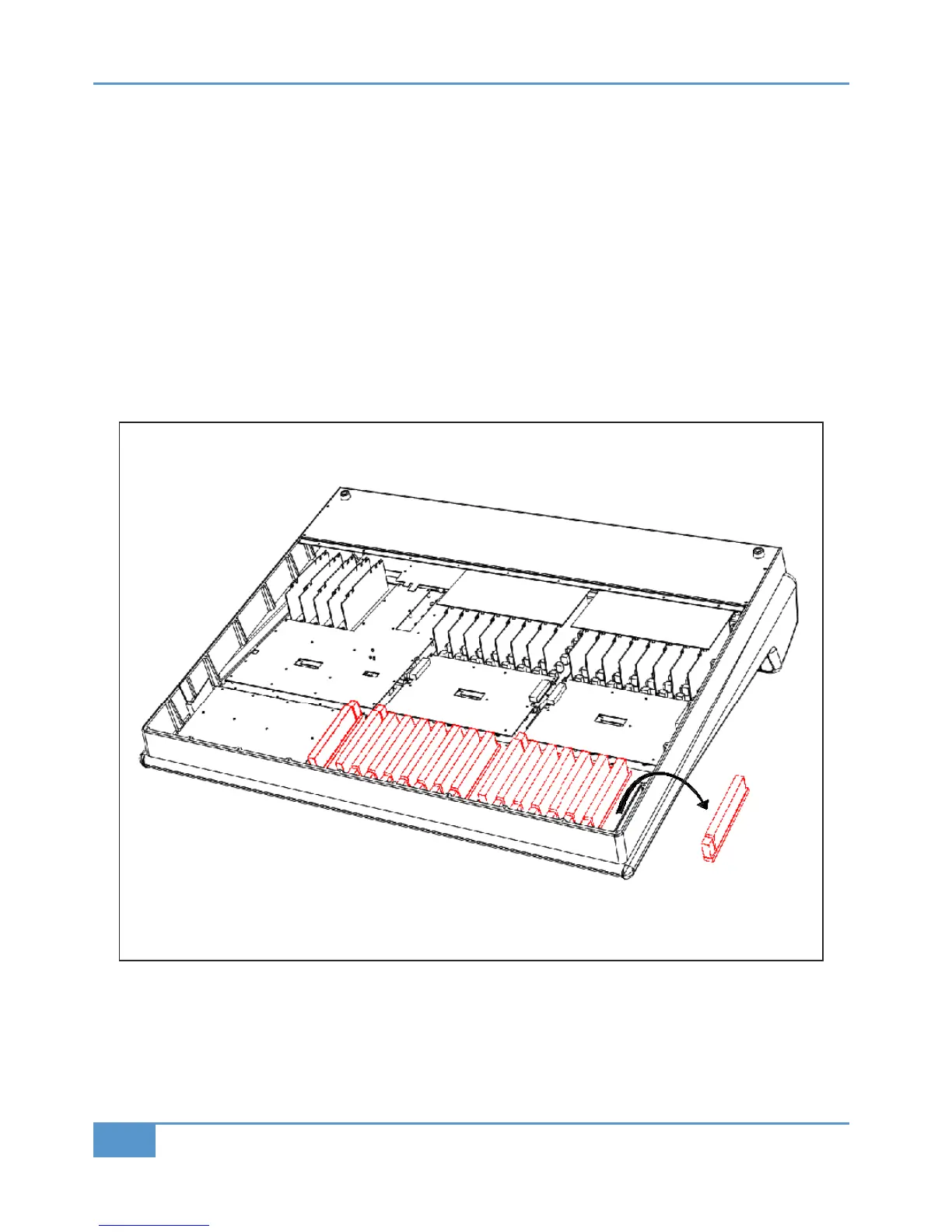

• Slide the front of the console over the edge of the work surface to gain access to the faders.
• Remove the two loosened hex screws and remove the fader from the console.
• Fit the replacement part, ensure correct orientation and secure with the two hex screws.
• Connect the fader to the 629502XA assembly, refer to adjacent faders for correct connector order .
• Refit the back panel and rotate the console face upwards.
• Finally, fit the knob cap and test for correct operation.
• No user calibration of the fader is required.
Appendix G - Service
138
Matrix
2
Owner’s Manual
