9 - 629507XC Motion Control

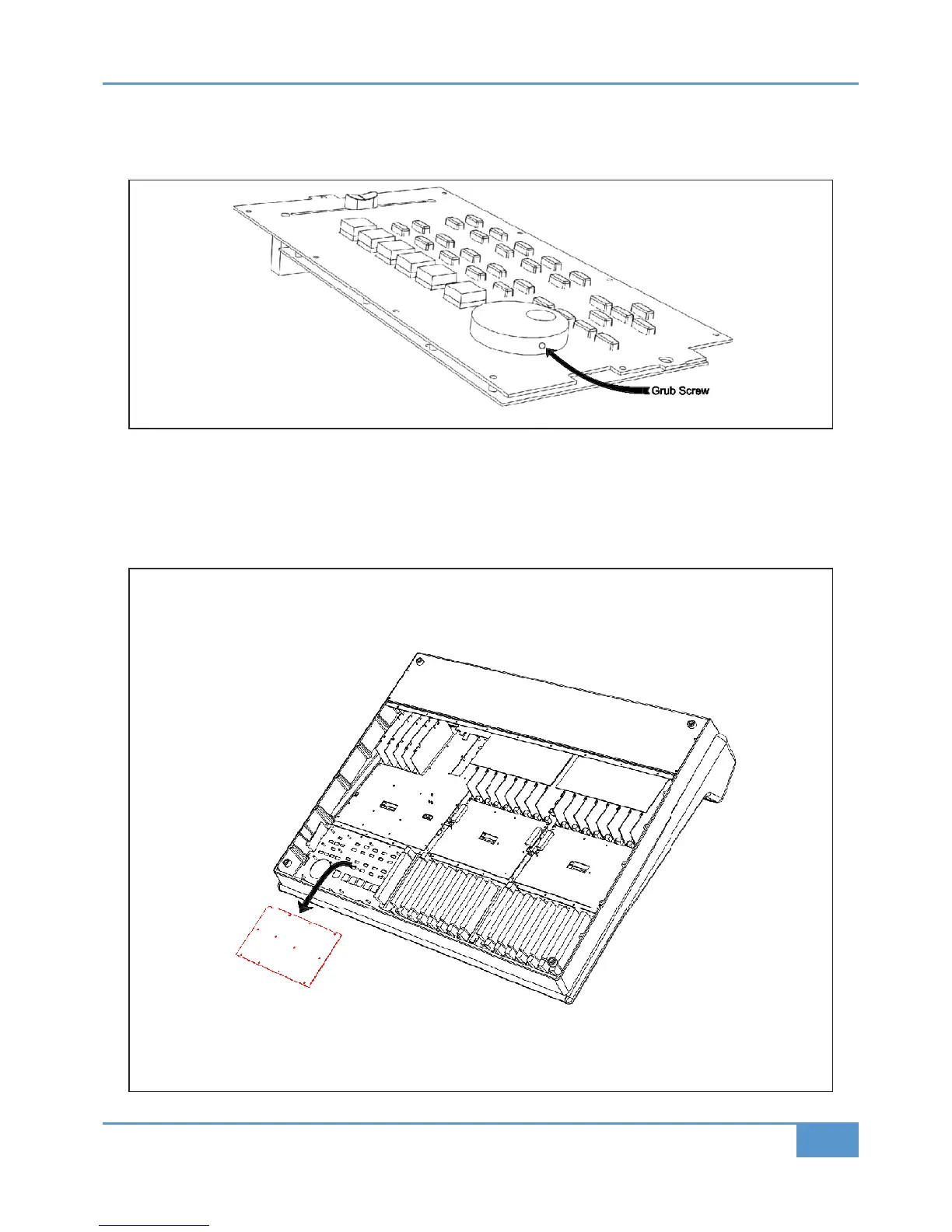

Using a 2mm Hex driver loosen the grub screw in the jog wheel and then remove. Take care not to lose the plastic washer
underneath the jog wheel.
Follow instruction #1 for the removal of the base plate.
Disconnect Loom J and the two master fader connections from the motion control assembly.
Remove the 12 screws securing the motion control assembly to the front plate.
Replace with new assembly and reassemble, take care when refitting the jog wheel to ensure free rotation.
Appendix G - Service
143
Matrix
2
Owner’s Manual
