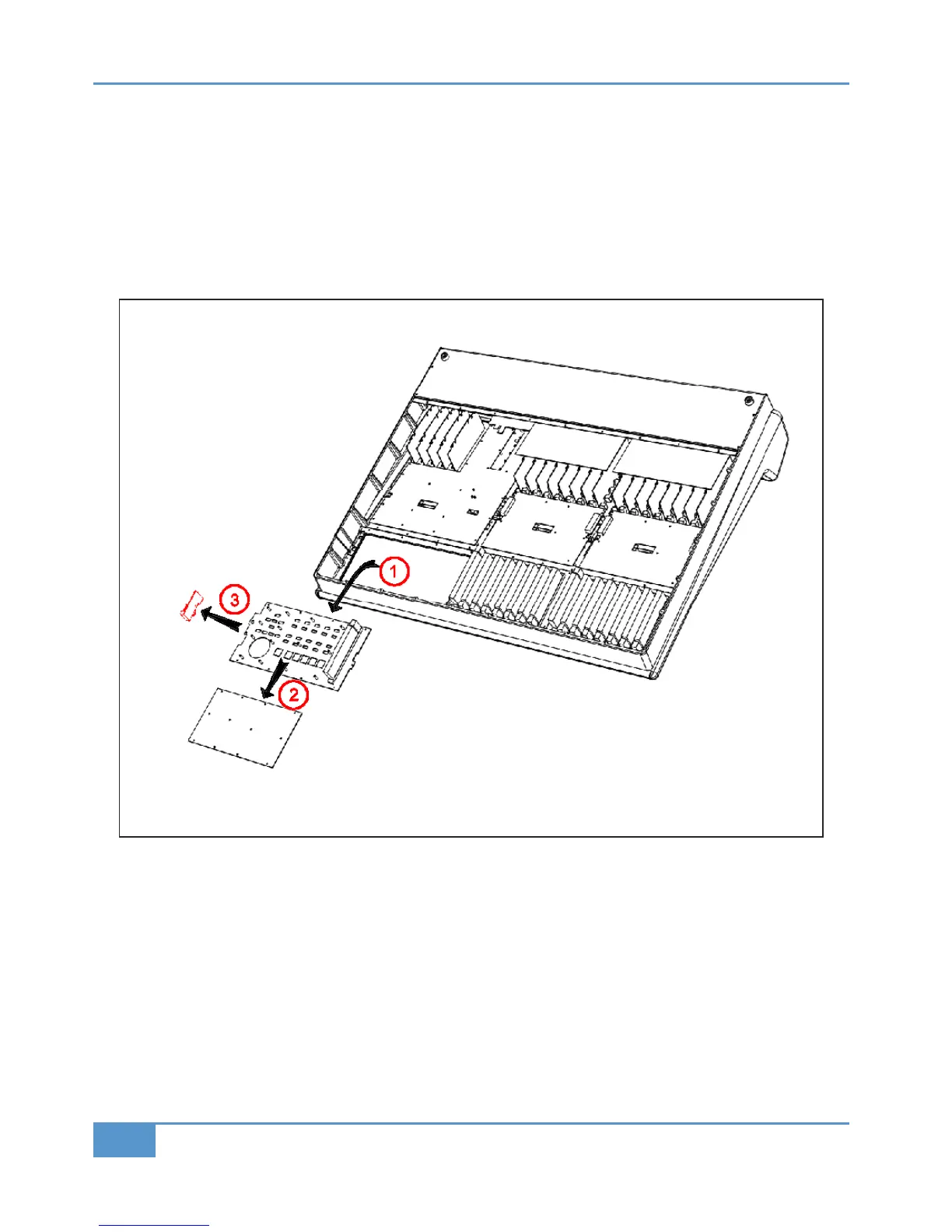

10 - 629507XD Headphone/iJack Panel Replacement
Follow instruction #9 for the removal of the 629507XA motion control panel.
Remove the ten screws securing the mounting plate to the frame.
Remove the mounting plate, unplugging loom AB from the headphone assembly as you raise the panel.
Remove the screw securing the headphone PCB to the mounting plate.
Remove the nut from the headphone jack socket.
Fit the replacement assembly and reassemble the console.
Appendix G - Service
144
Matrix
2
Owner’s Manual
