Solid State Logic Matrix 2 - 15 - 629516 X1 Router Replacement

15 - 629516X1 Router Replacement

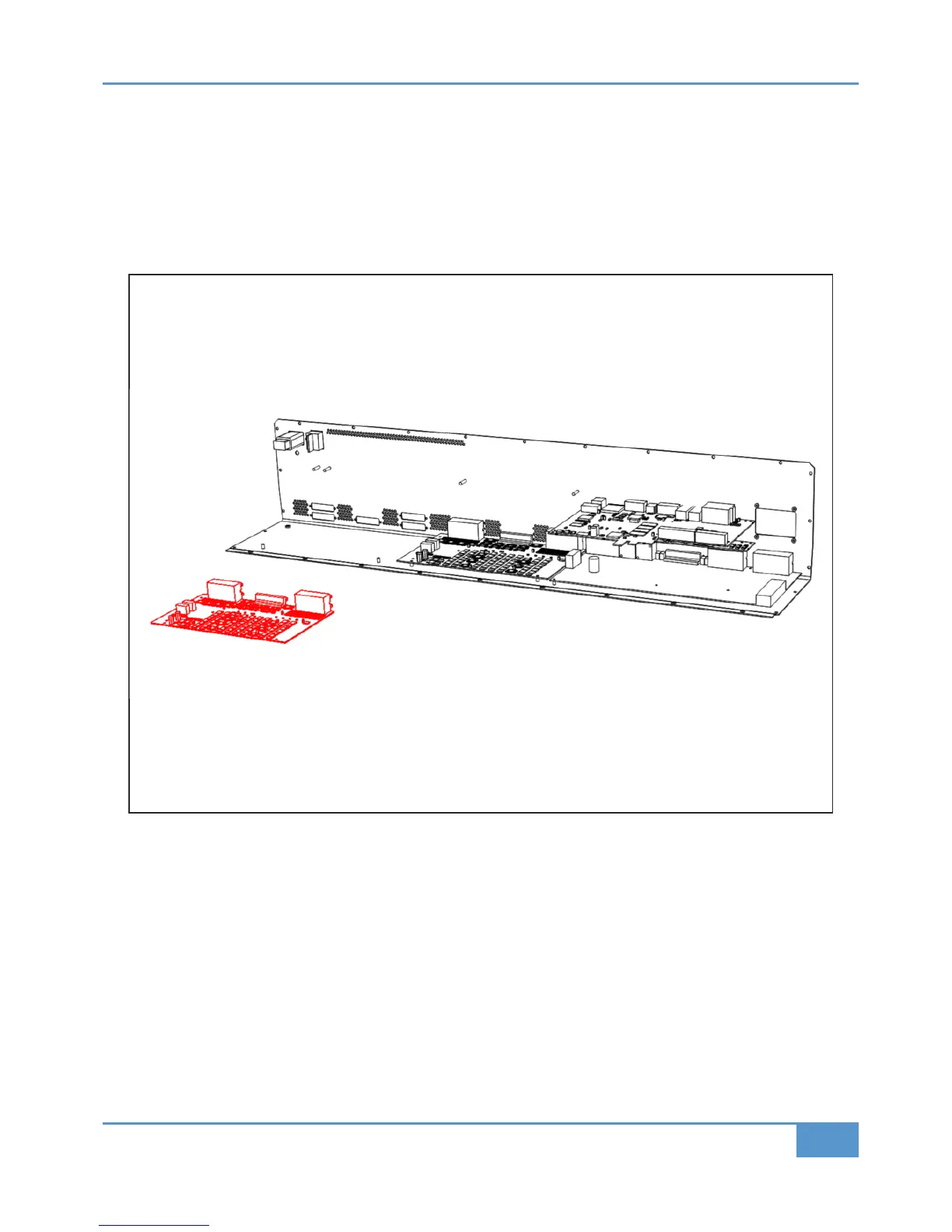

• Follow instruction #2 for removal of the rear connector panel.
• Remove the connecting looms.
•
Using a #1 Pozi-drive screwdriver, remove two fixing screws.
•
Remove the retaining nuts from each of the boards D type connectors using a 5.5mm nut spinner.
• Lift the assembly clear.
