Sonoscape S30 - Page 25

17
Service Manual
3 Principle Descriptions
When a probe is connected to probe port A, MAX4639 transmits ID information of this probe to the
ultrasound system, and icons for corresponding application modes of this probe appear on the screen.
Meanwhile, VBF board detects the probe to drive the relay.

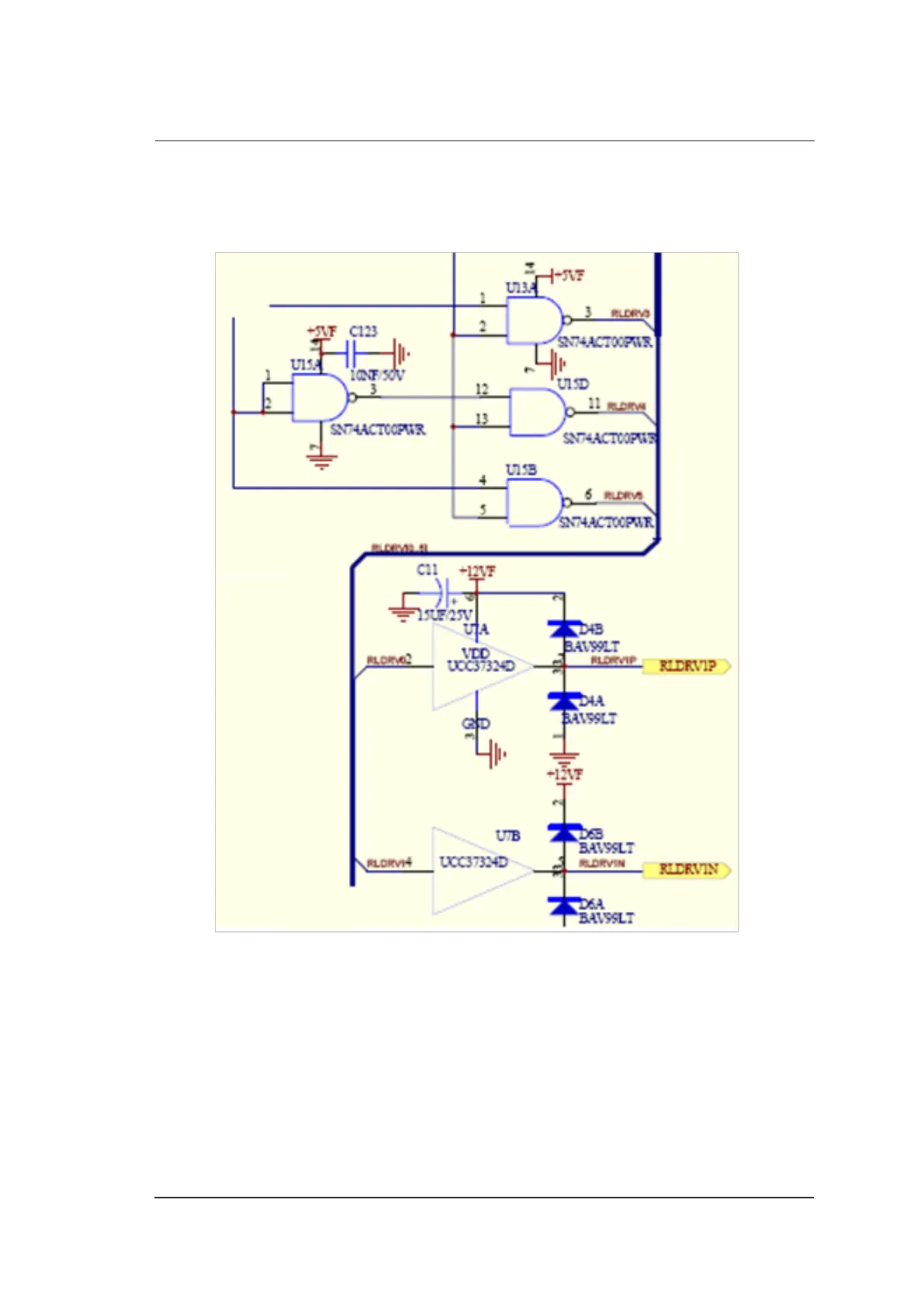

Figure 3-4 Relay Drive Circuit
