5 Pin Descriptions
5.2.13 Back Plane Power Cable
P/N: 2275.00517
Cable Material:
To Back Plane
CN1 Kelly
To Power Switch Pin4
CN2 Brown
To Power Switch Pin1
CN3 Blue
CN4
Back Plane Grounding

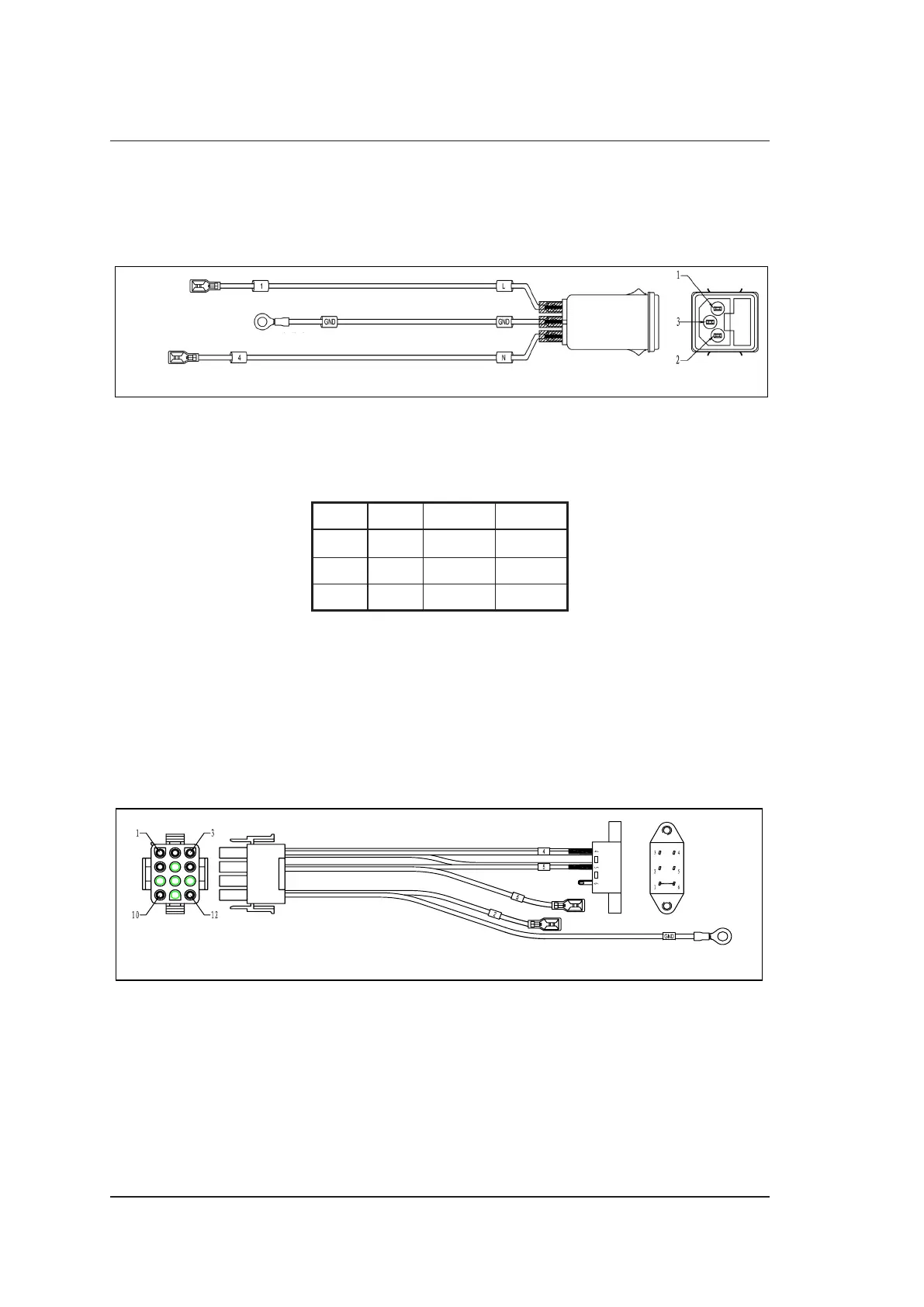

Figure 5-14 Back Plane Power Cable
Pins:
Table 5-14 Back Plane Power Cable
Pins
Signal
L N
GND
Color Brown Blue Kelly
CN2 CN3 CN1
CN4 1 2
3
Instructions:
Connect CN1 to back plane grounding, connect CN2 to power switch pin1, connect CN3 to power
switch pin4, and then connect CN4 to back plane.
5.2.14 Power Switch Cable
P/N: 2275.00471
Cable Material:
To Powerextend Board
7500-3043-02 (J31)
CN1
CN4 Brown
CN3 Blue
CN2
CN5 Kelly
Blue
Blue
Brown
Brown
Figure 5-15 Powr Switch Cable
