Sonoscape S30 - Drive Signal Cable (with Locks at Two Ends); Peripheral Dual USB Cable

73
Service Manual
5 Pin Descriptions
5.2.21 Drive Signal Cable (With Locks at Two Ends)
P/N: 2275.00462
Cable Material:
To PC Main Board
2100.00302 SATA2 Interface
To Drvie SATA Interface
CN2
CN1

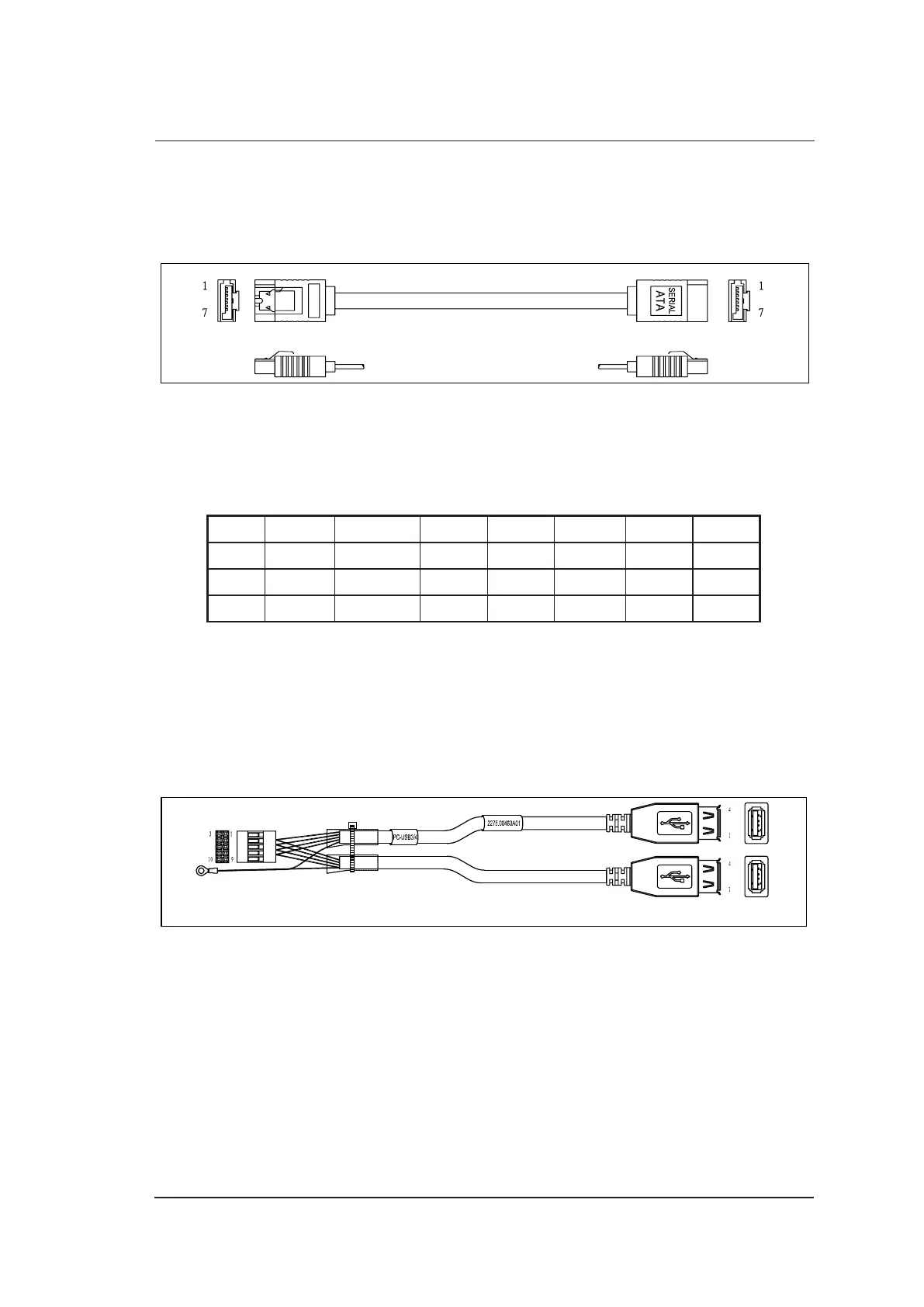

Figure 5-22 Drive Signal Cable
Pins:
Table 5-21 Drive Signal Cable
Pins
Signal
GND TX0+ TX0- GND TR0+ TR0-
GND
Color Shielded Blue White Shielded Blue White Shielded
CN1 1 2 3 4 5 6
7
CN2 1 2 3 4 5 6
7
Instructions:
Connect CN1 to PC main board 2100.00302 (SATA2), and connect CN2 to drive SATA interface.
5.2.22 Peripheral Dual USB Cable
P/N: 2275.00463
Cable Material:
To PC Main Board
2100.00302 (USB3/4)
CN1
CN2
CN3
CN4
Figure 5-23 Peripheral Dual USB Cable
