Sonoscape S30 - Hard Disk SATA Signal Cable (with Locks at Two Ends)

76 Service Manual
5 Pin Descriptions
Pins:
Table 5-25 Network Signal Cable
Pins
Signal TX+ TX- RX+
NC NC
RX- NC
NC
Color Orange
Orange/
White
Blue
Blue/
White
Green
Green/
White
Brown
Brown/
White
CN1 1 5 2
6 3
7 4
8
CN2 1 2 3
3 5
6 7
8
Instructions:
Connect CN1 to IO board 7500.3041 (J42), and connect CN2 to PC main board 2100.00302 net port.
5.2.26 Hard Disk SATA Signal Cable (With Locks at Two Ends)
P/N: 2275.00461
Cable Material:
To PC Main Board 2100-00302 SATA Interface To SATA Hard Disk
CN1
CN2

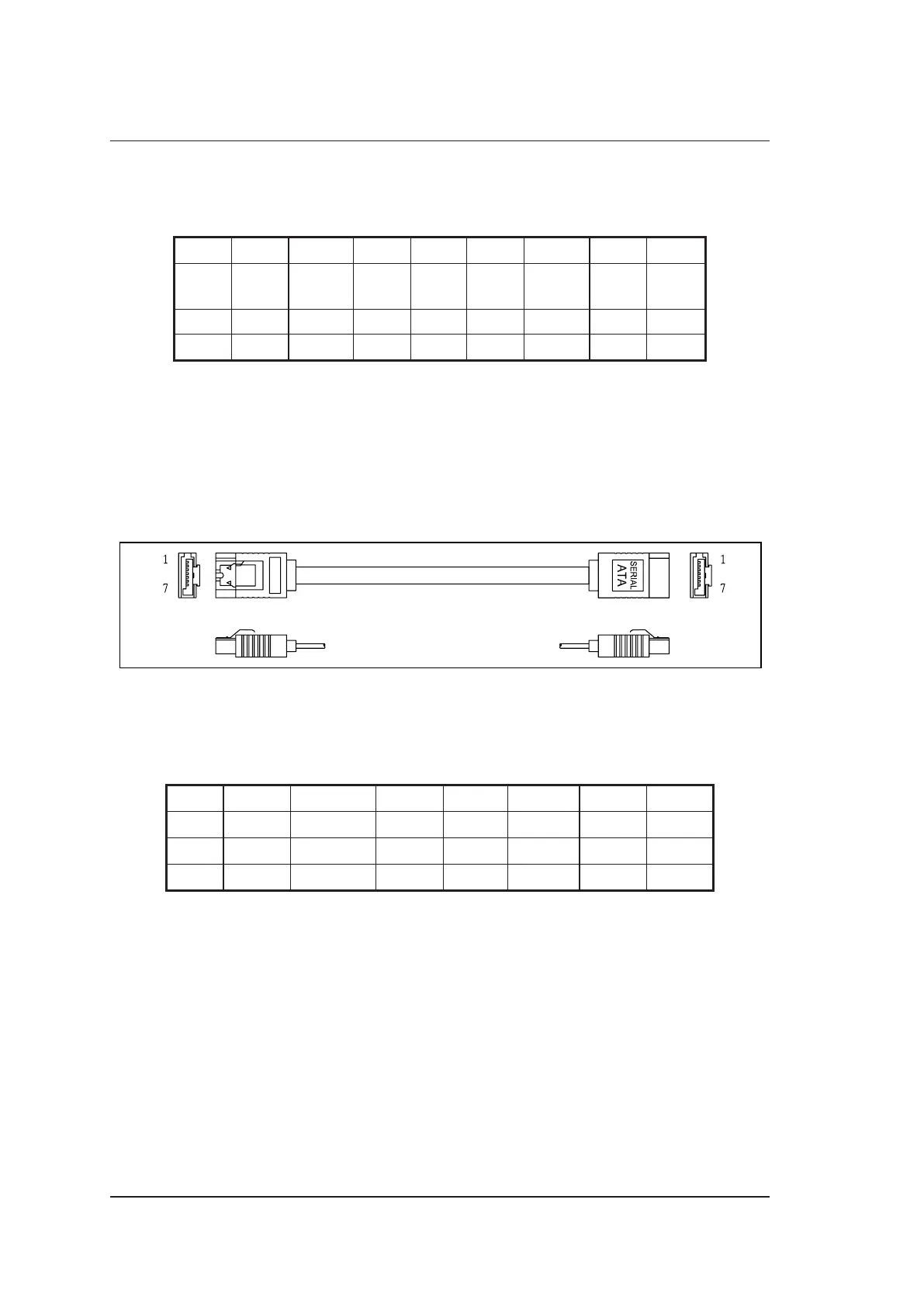

Figure 5-27 Hard Disk SATA Signal Cable
Pins:
Table 5-26 Hard Disk SATA Signal Cable
Pins
Signal GND TX0+ TX0- GND TR0+ TR0-
GND
Color
Shielded Blue White Shielded Blue White Shielded
CN1 1 2 3 4 5 6
7
CN2 1 2 3 4 5 6
7
Instructions:
Connect CN1 to PC main board 2100.00302 (SATA2), and connect CN2 to drive SATA interface.
